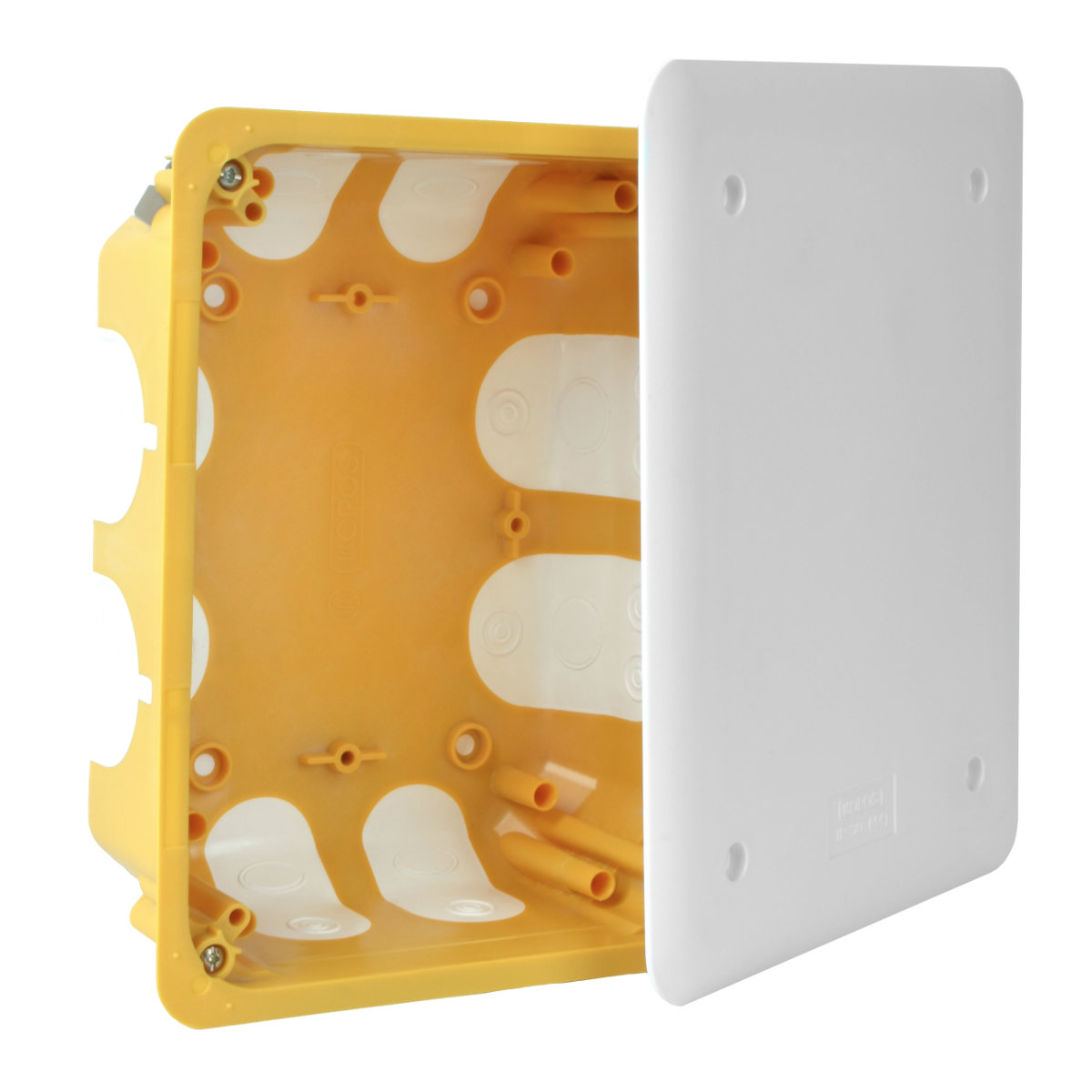

illustrative picture
To download 3D models, please login or create an account and request access.
EAN kood8595568932600
Tollikood39259080
Kaal0,3070 kg/pcs
MaterjalPVC
Juhtiv materjaljah
Soundproofingjah
Isekustuv30 s
Nimipinge<= 500 V
Nimivool<= 16 A
Temperatuurikindlus-5 - 60 °C
Põlemistest850 °C

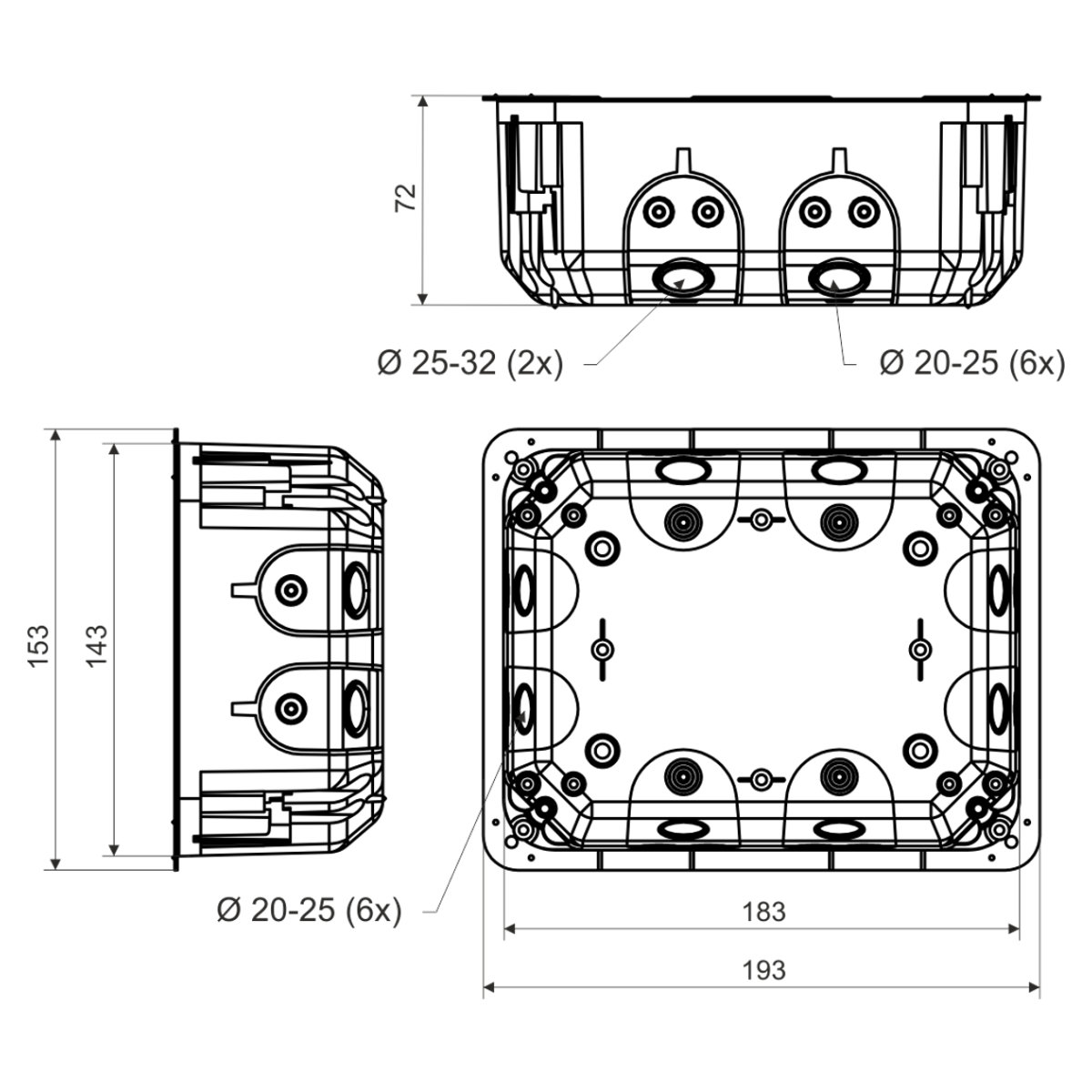

Laius193 mm
Kõrgus153 mm
Sügavus72 mm
Puuritud augu läbimõõt40 mm
Tootmissoovitused
Kõigi toodete puhul, mis paigaldatakse õõnesseintesse, soovitame kasutada meie tarnitud freesimis seadmeid.
Alusmaterjali tulekaitseklassA1 - F
KaitsetüübidIP 30
StandardidČSN EN 60 670-1
Pakendi kirjeldus
harukarpi on paigaldatud kaane- ja seadmekruvide , harukarbid on eraldi koos kaanega, mis on pakitud fooliumi

Possibility of installing the TS 35 support rail. On the outside of the bottom of the box, tips indicate the drilling points. Possibility of marking the hole for installation using protrusions on the rim of the box. Inlet openings made of flexible material. The cable or pipe is installed by tearing out the pre-pressed inlet on the flexible membranes and inserting the cable or pipe into the created hole. Ensured airtightness of the passage even when the cable or pipe is inserted. Prevents airflow through installations. Suitable for low-energy or passive houses and for soundproof walls with attenuation up to 69 dB. It is not necessary to countersink the edge of the plasterboard during installation. Mounting screws have a double thread for quick installation. Protected by a European industrial design trademark. The lid for the box can be purchased separately as a spare part V 180_HB.
