illustrative picture
SSU_EN
| EAN kood | 8595568936745 |
| Tollikood | 73269098 |
| Kaal | 0,1482 kg/pcs |
| Pinnaviimistlus | Geomeetriline mitte-elektrolüütiline plaat |
| Temperatuurikindlus | -50 - 150 °C |
| Standardid | ČSN EN 61537 |
| Metallplaadi paksus | 1,5 mm |
| Kruvide arv ühendamiseks | 6 |

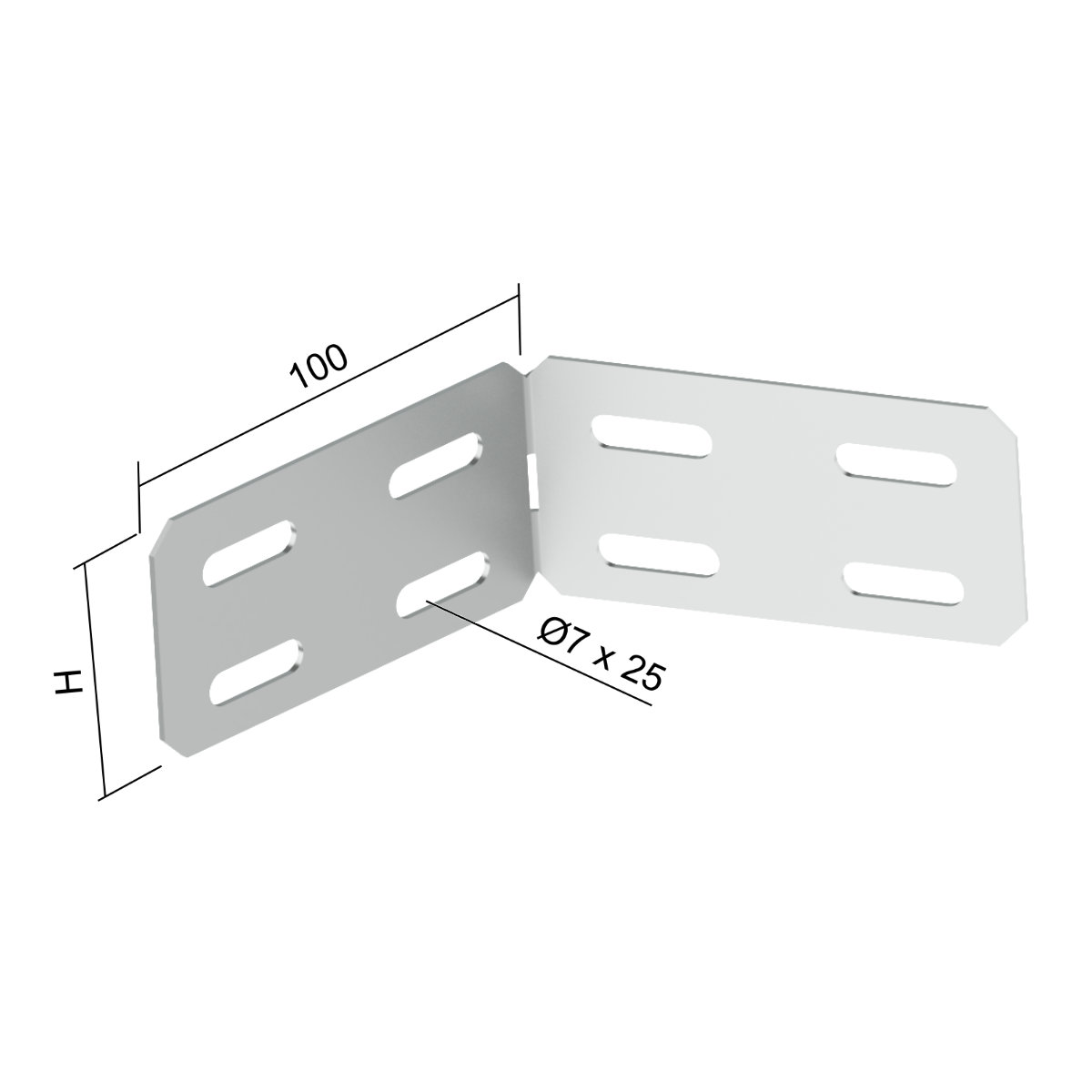

| Mõõde H | 75 mm |
| Kaabliteede kõrguse jaoks | 85 mm |

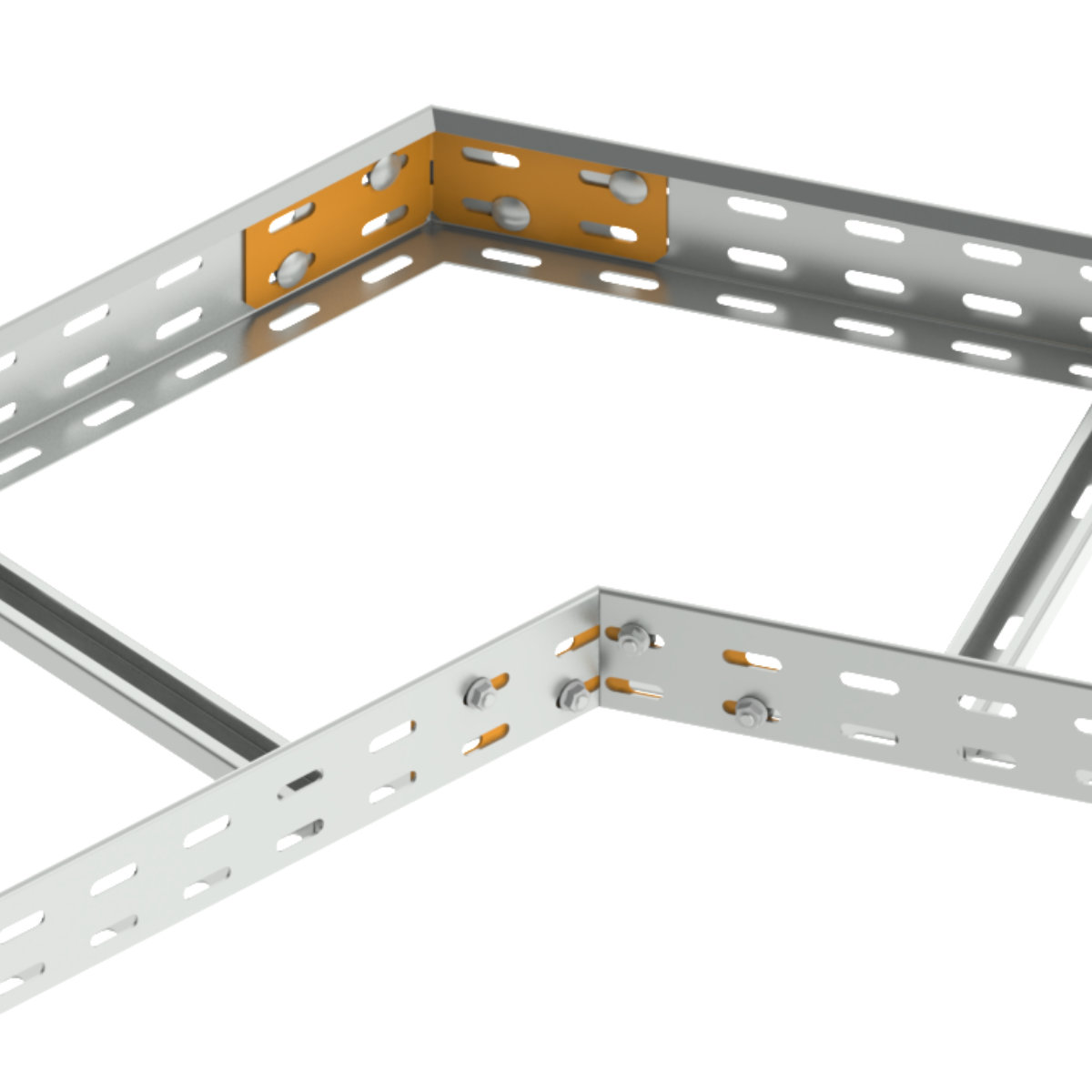

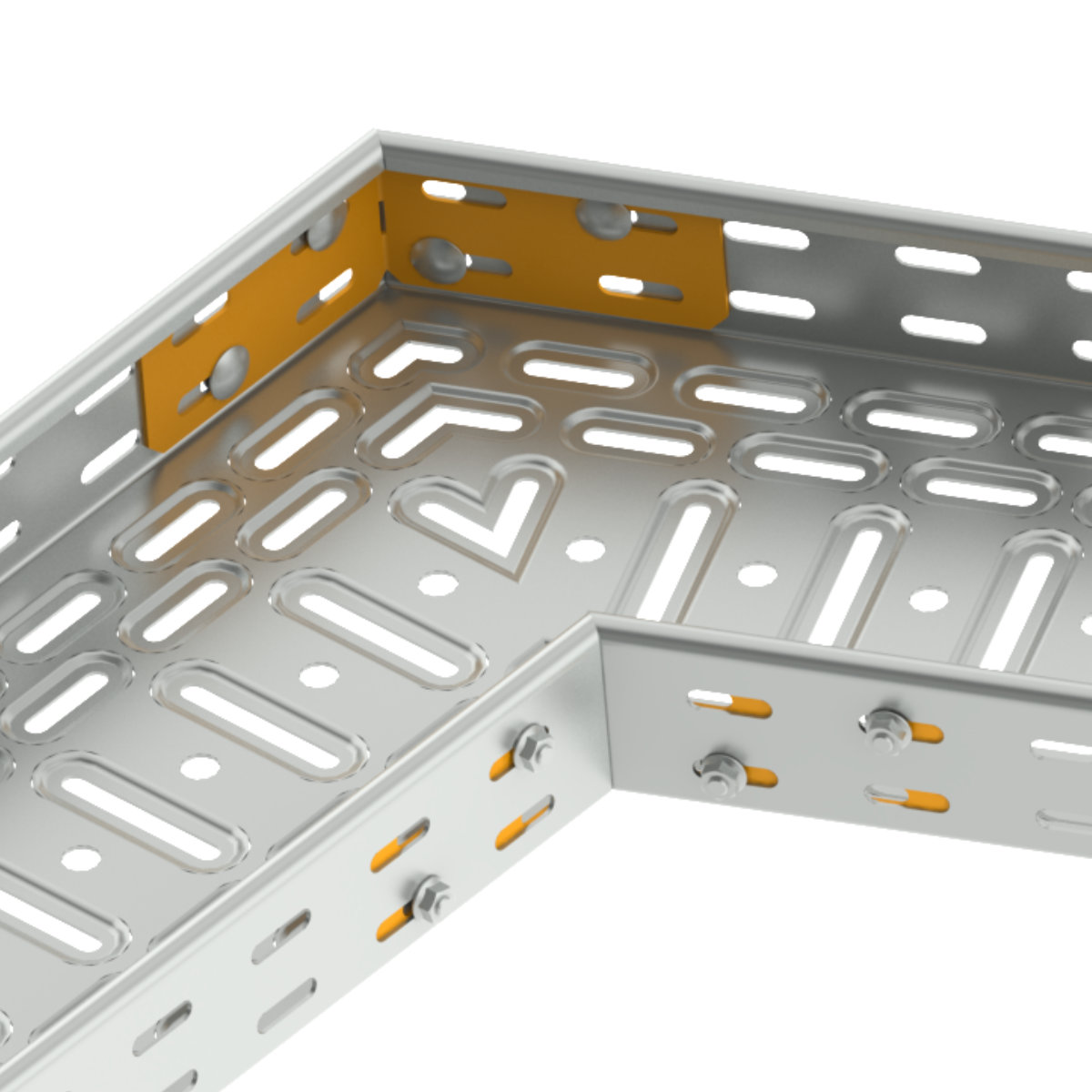

Angle couplings are used to create any angle, mainly for connecting in places of a slight bend in the route or for creating arcs of large radii or bypassing columns and pillars. The connection is performed using the bolts NSM 6X10. These items can also be ordered in a varnished version.
