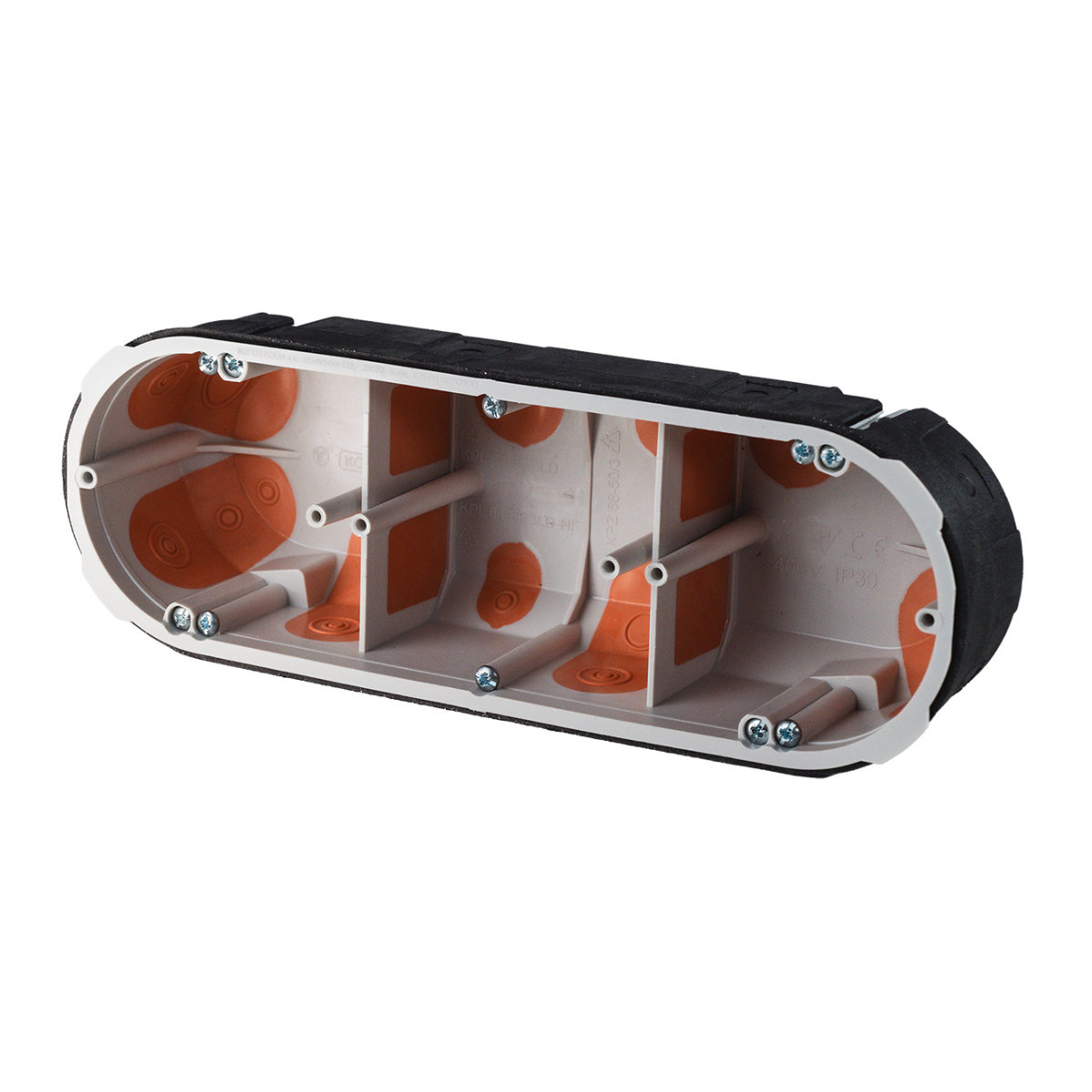

illustrative picture
To download 3D models, please login or create an account and request access.
KPZ68-503_PO_EN
| EAN kood | 8595568937636 |
| Tollikood | 39259080 |
| Kaal | 0,1588 kg/pcs |
| Värv | must + hall + oranž |
| Materjal | PP |
| Halogeenivaba materjal | jah |
| Juhtiv materjal | jah |
| Soundproofing | jah |
| Isekustuv | 30 s |
| Nimipinge | <= 400 V |
| Nimivool | <= 16 A |
| Temperatuurikindlus | -5 - 60 °C |
| Põlemistest | 850 °C |
| Assamblee | horizontal and vertical mounting |

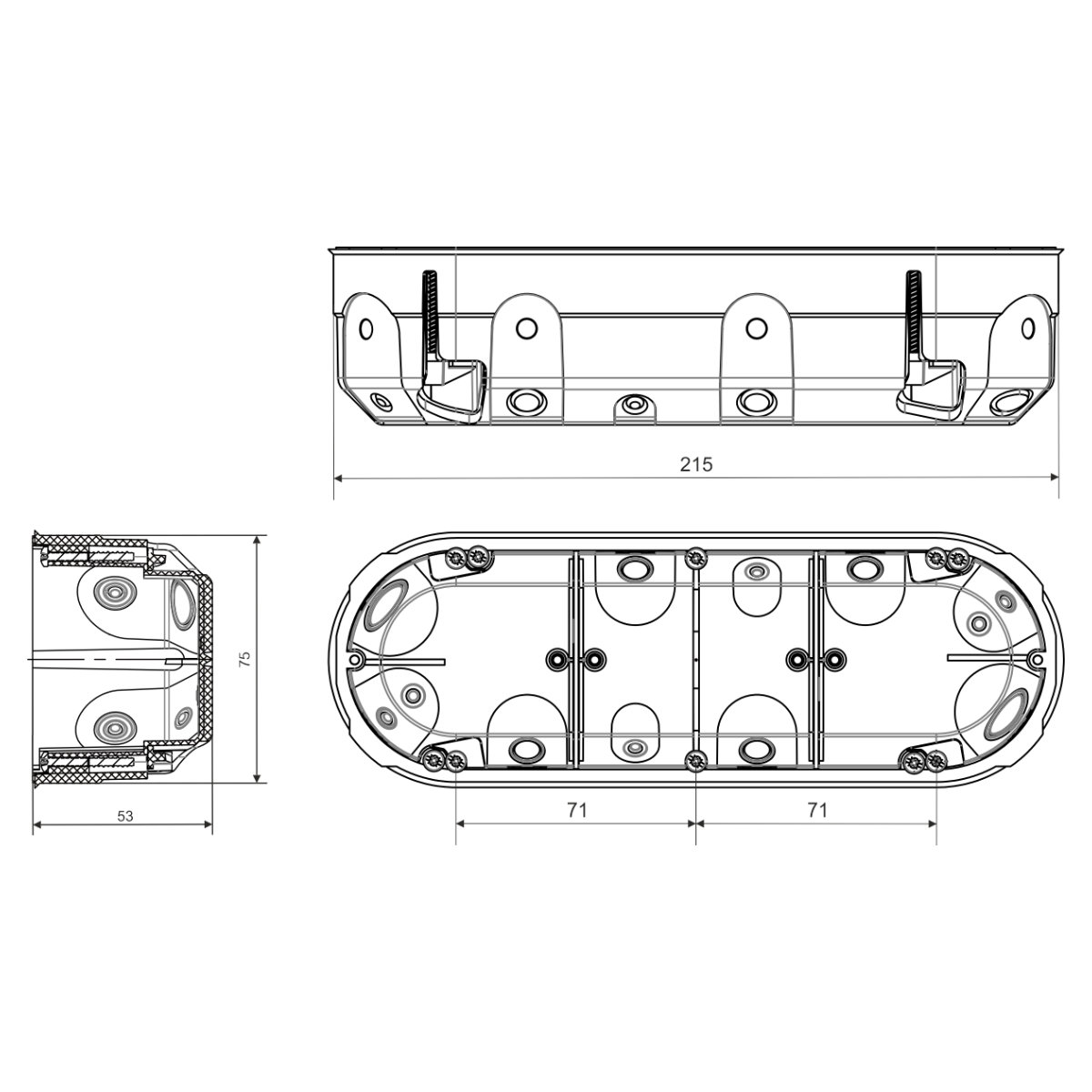

| Laius | 215 mm |
| Kõrgus | 75 mm |
| Sügavus | 53 mm |
| Puuritud augu läbimõõt | 73 mm |
| Tootmissoovitused Kõigi toodete puhul, mis on paigaldatavd õõnesseina, soovitame kasutada meie tarnitud freesimisseadmeid. | |
| Alusmaterjali tulekaitseklass | A1 - F |
| Kaitsetüübid | IP 30 |
| Standardid ČSN EN 60 670-1, ČSN EN 1363-1:2013, ČSN 73 08 10 | |
| Tulekindluse standardid | EI 15 - EI 90 |
| Pakendi kirjeldus the box is fitted with screws for fixing onto plasterboard and with instrument screws, pack loosely in a box | |
In case of fire, it provides integrity and insulation for up to 90 minutes (EI 15 - EI 90). The entry openings are made of flexible material. The fire-resistant material is located outside the box. The drill bit diameter for installation is 73 mm. The box is soundproof (soundproofing up to 69 dB). Mounting screws are equipped with a double-threaded design with plastic pads for quick installation. The box is designed for facilities with increased need for personal and property protection.
