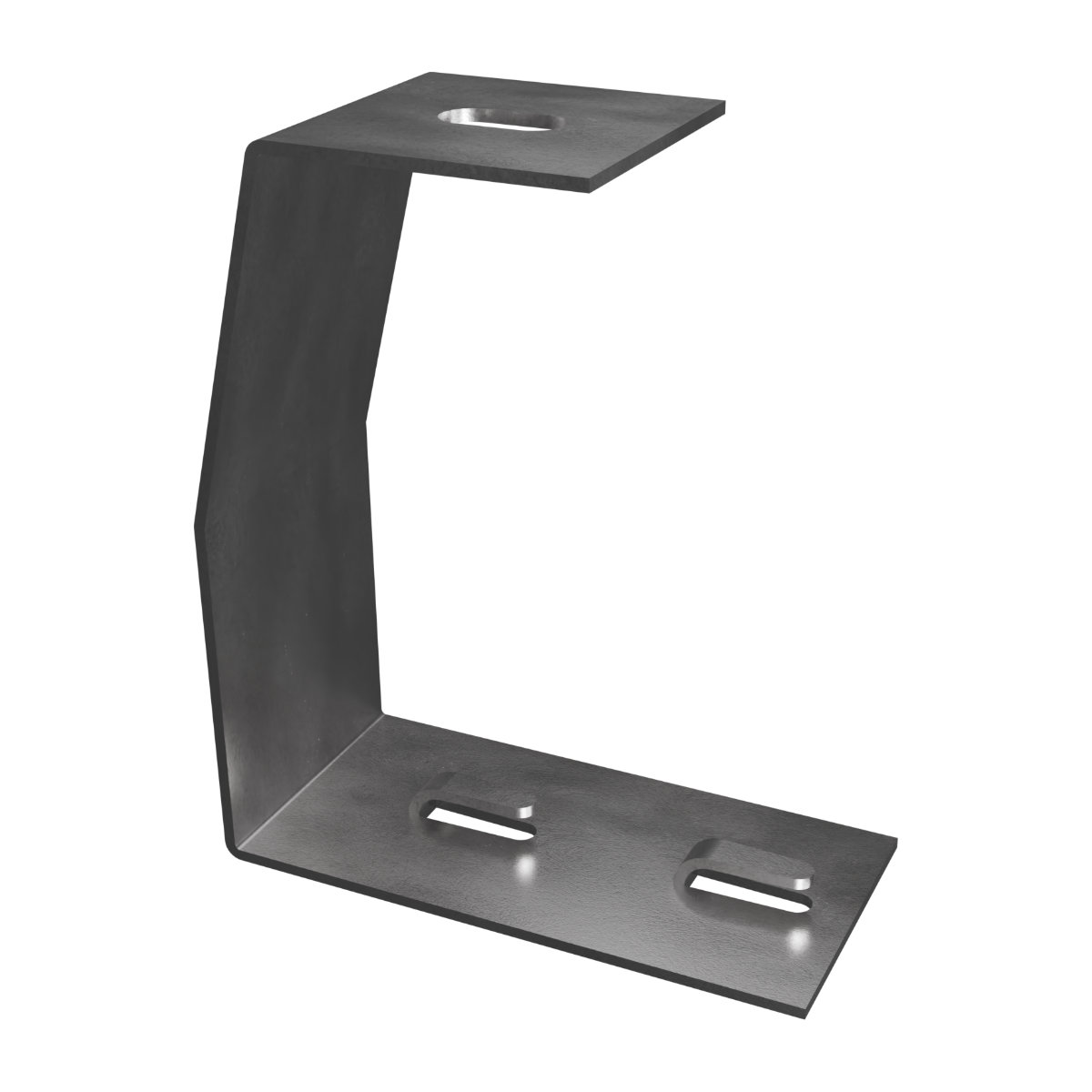

illustrative picture
DZSZ_V_EN
| EAN kood | 8595568940131 |
| Tollikood | 73269098 |
| Kaal | 0,1940 kg/pcs |
| Pinnaviimistlus | Eelnevalt tsingitud |
| Laius | 104 mm |
| Kõrgus | 125 mm |
| Standardid | ČSN EN 61537 |
| Metallplaadi paksus | 2 mm |
| Kaabliteede laiuse jaoks | 100 mm |

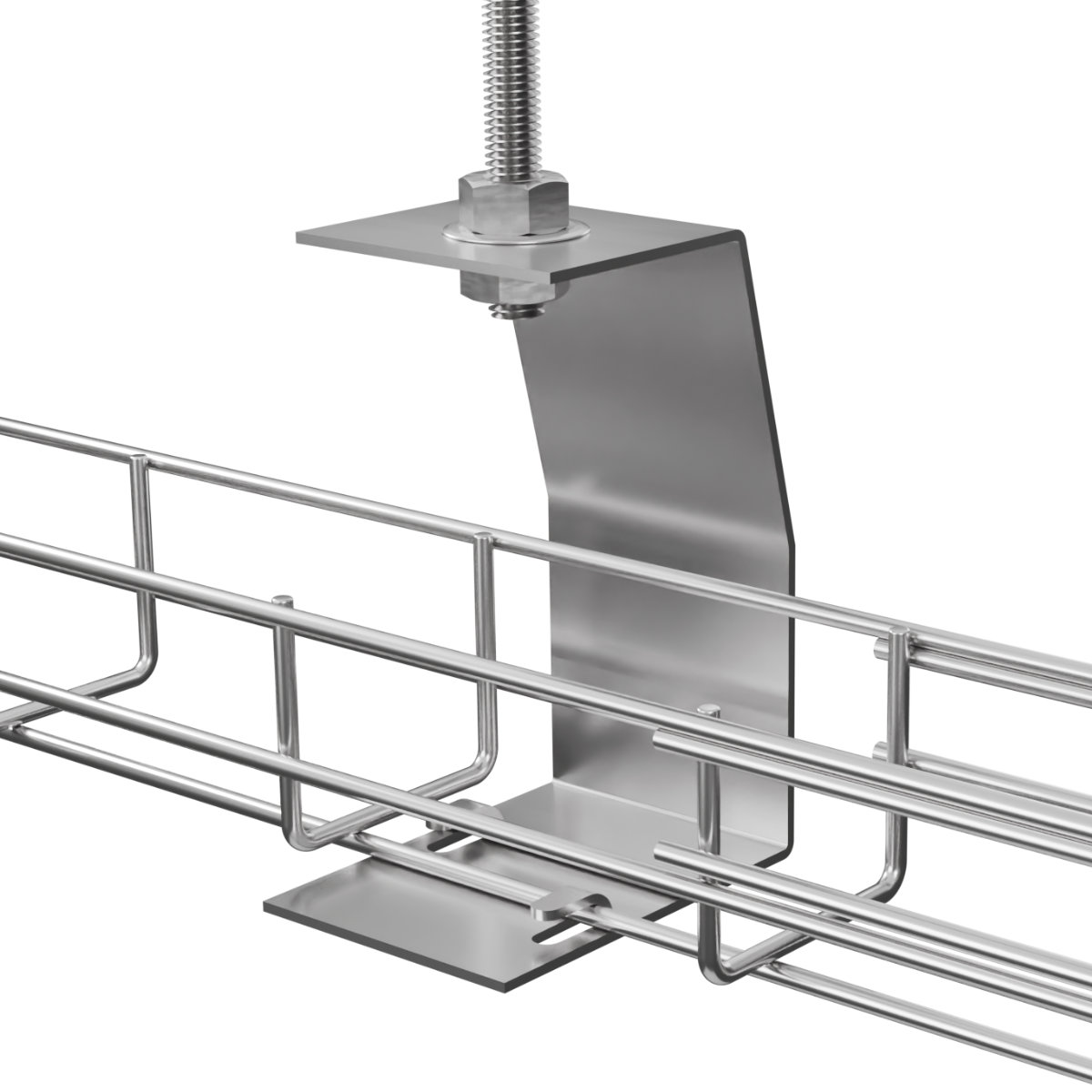

The central hanger is designed for fastening of the wire trays from ceiling together with a threaded rod Ø 8 mm and 2 nuts M 8. The cable tray is inserted into the prepared tabs, the ends of the tabs are squeezed and the tray is attached to the hanger.
