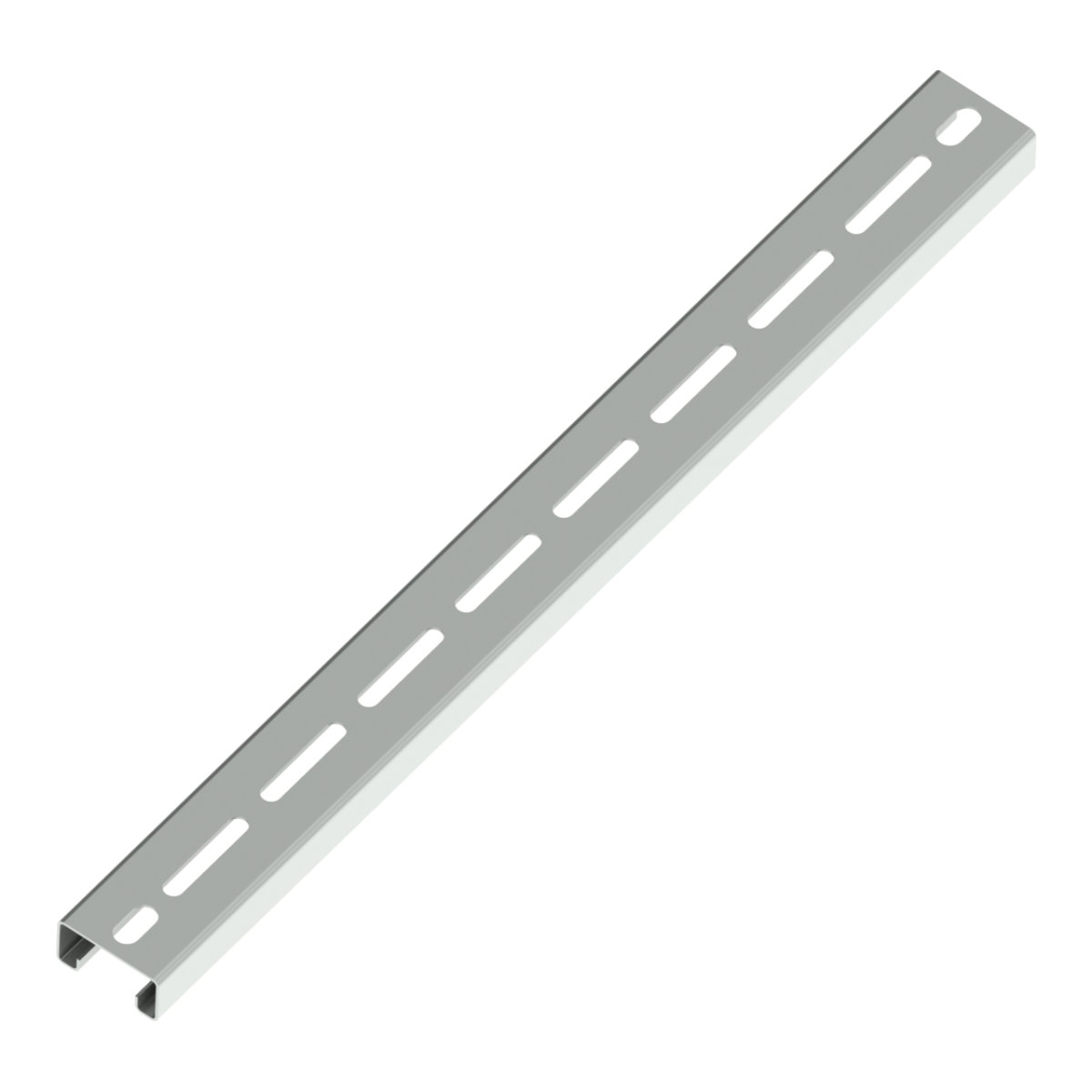

illustrative picture
INOXNP_EN
| EAN kood | 8595568906304 |
| Tollikood | 72224050 |
| Kaal | 0,4200 kg/pcs |
| Pinnaviimistlus | Roostevaba teras AISI 304 |
| Temperatuurikindlus | -50 - 150 °C |
| Laius | 41,5 mm |
| Kõrgus | 21 mm |
| Pikkus | 450 mm |
| Standardid | ČSN EN 61537 |
| Metallplaadi paksus | 1,2 mm |
| Maksimaalne koormus | 100 kg |
| Kaabliteede laiuse jaoks | 400 mm |
| Välised avad | ∅9x18 mm |
| Sisemised avad | ∅7x40 mm |

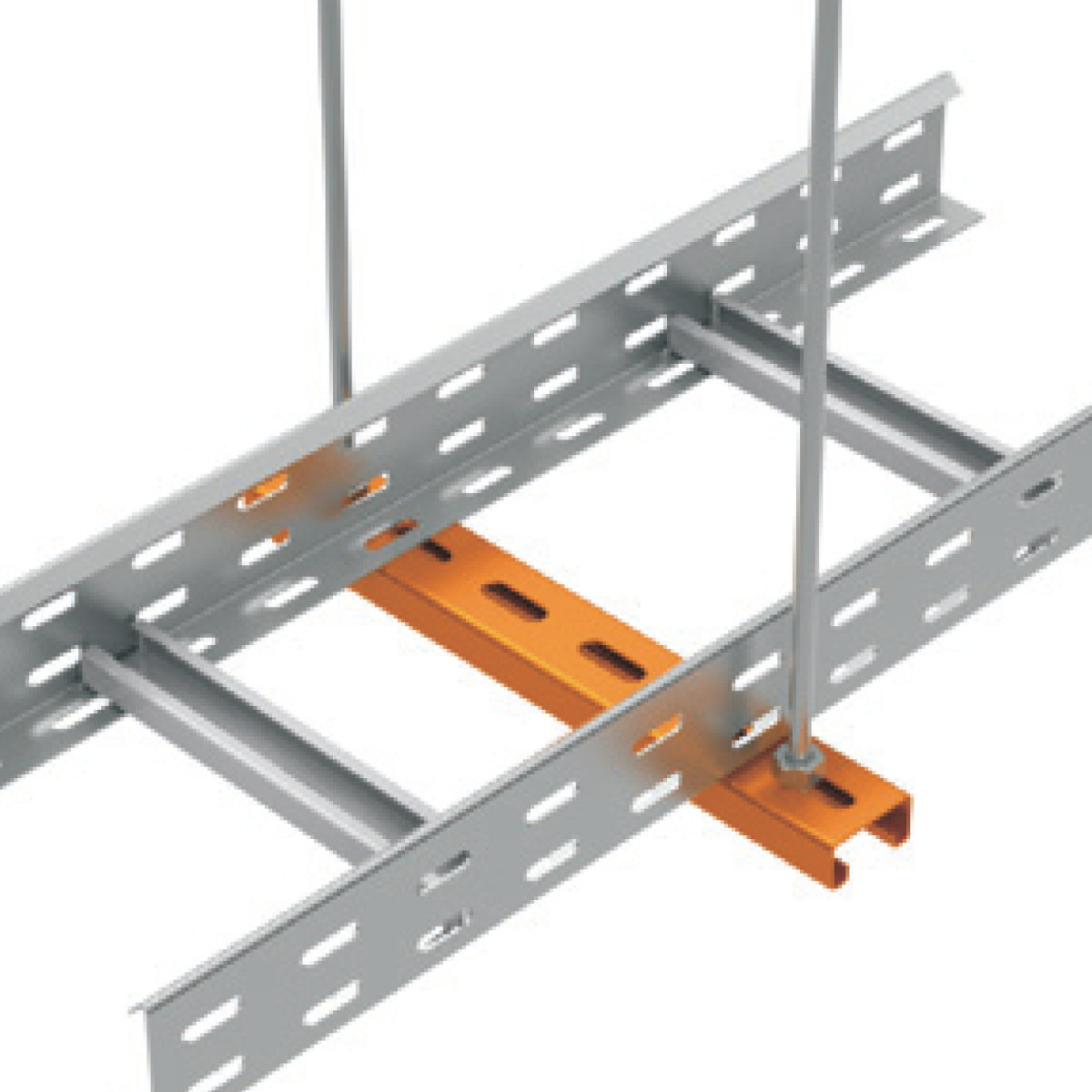

Suitable for creating of beam for cable traces to be carried on thread rods. The load bearing profile is fixed by using two threaded rods INOXZT 8 + nut INOXM 8 + washer INOXPD 8. NIXSM 6X10 bolts are used to attach the cable tray to the load bearing profile.
