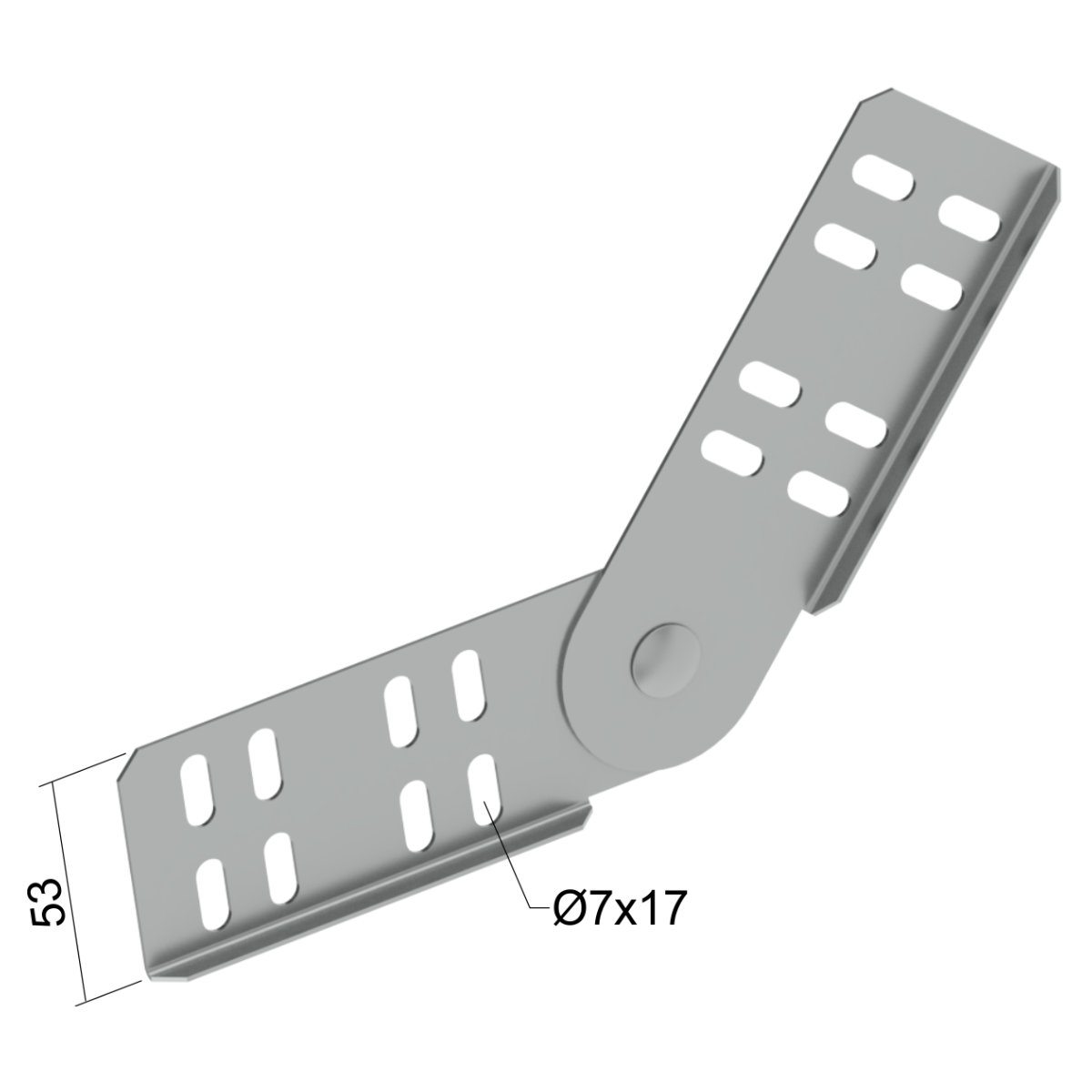

illustrative picture
INOXSK_EN
| EAN kood | 8595057631199 |
| Tollikood | 73269098 |
| Kaal | 0,1500 kg/pcs |
| Pinnaviimistlus | Stainless steel AISI 304 |
| Temperatuurikindlus | -50 - 150 °C |
| Standardid | ČSN EN 61537 |
| Metallplaadi paksus | 1,2 mm |
| Kruvide arv ühendamiseks | 4 |
| Kaabliteede kõrguse jaoks | 60 mm |

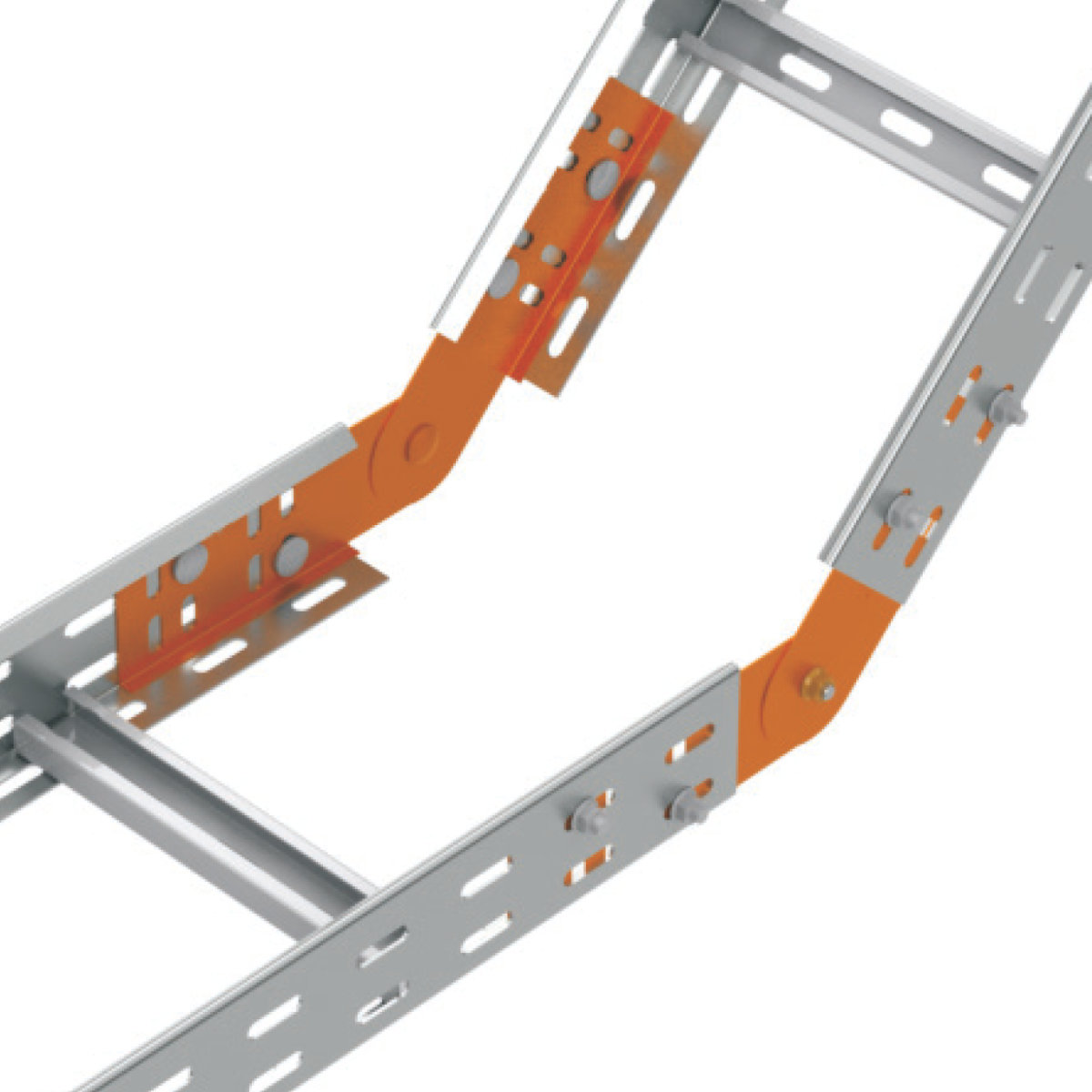

For the connection of the hinged joint to the tray there are used the bolts NIXSM 6X10. The joint is delivered in 1 piece per packing. 2 pieces are needed to create the bend in the route.
