EAN kood8595568931337
Tollikood73262000
Kaal1,1400 kg/m
Pinnaviimistluselectrolytic zinc-coating with higher protection

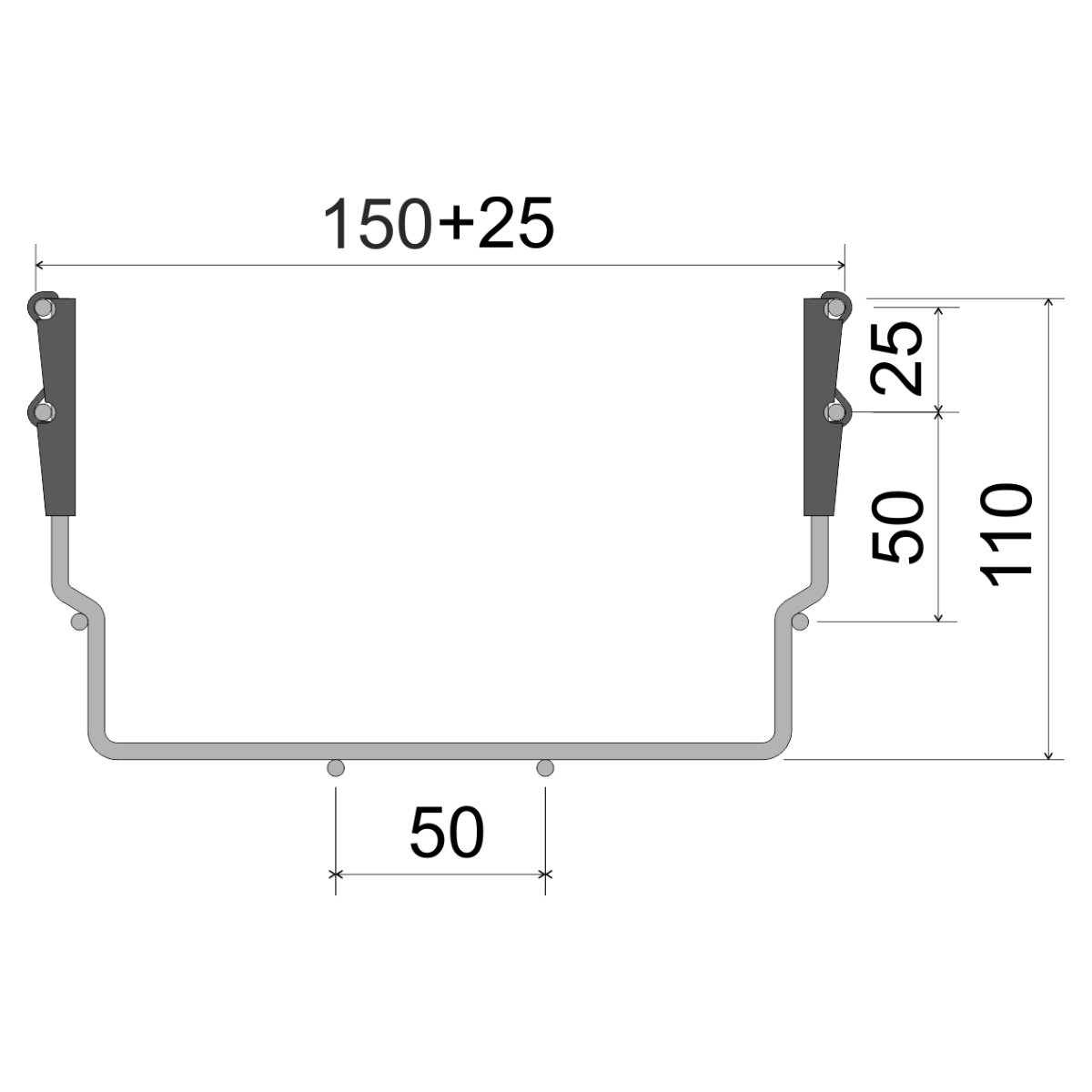

Laius150 mm
Kõrgus110 mm
Pikkus3000 mm
StandardidČSN EN 61537
Juhtme läbimõõt4,3 mm
Alumine riiv50x100

There are couplings at one end of the wire cable tray. In this way the conductive connection is fulfilled. To enable the proper ventilation it is recommended to install the trays at a distance at least 250 mm from each other and 20 mm from the wall.
