Spojovací deska

Lisad ja sertifikaadid

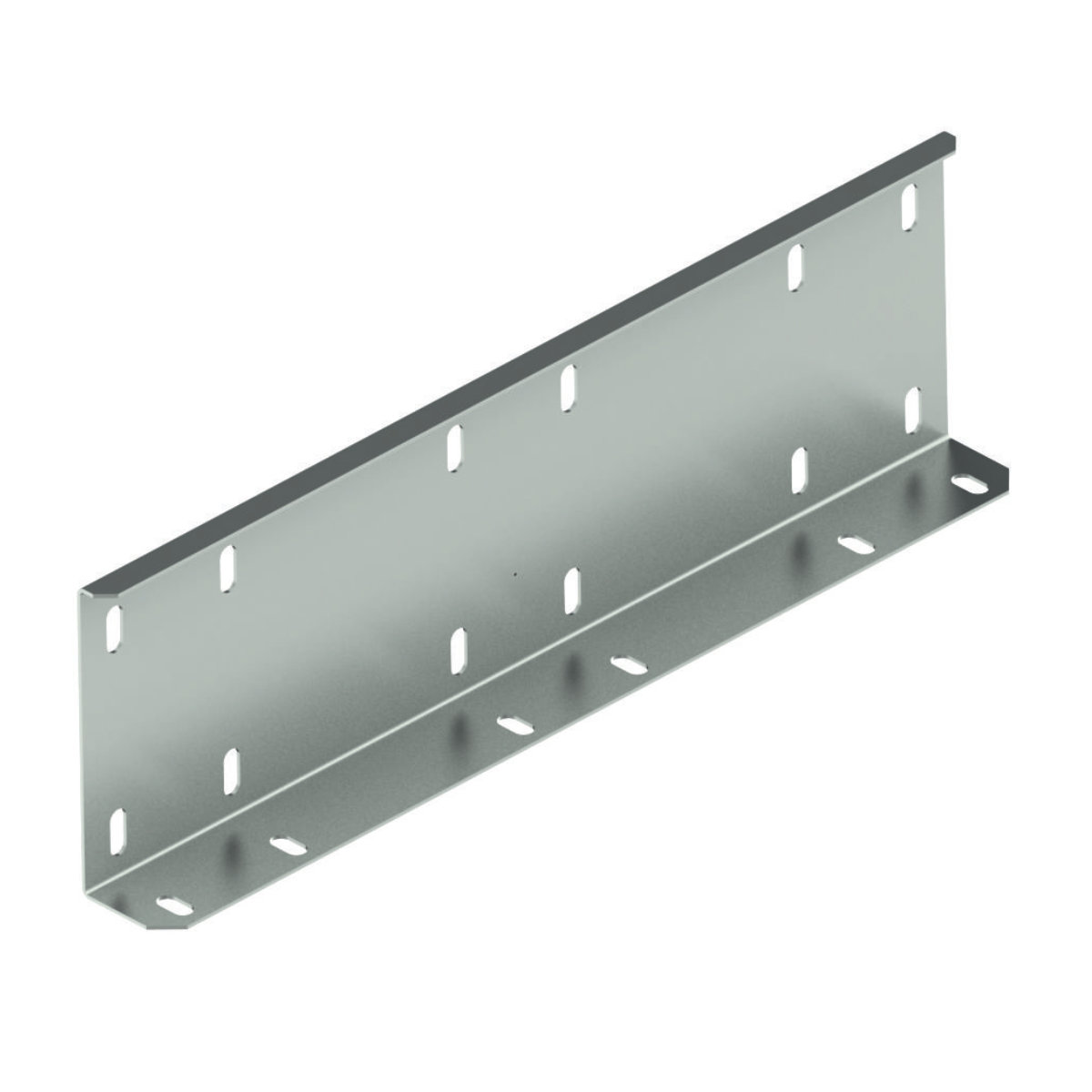

illustrative picture

Andmeleht
KDS_EN

EAN kood	8595568932150
Tollikood	73269098
Kaal	0,6900 kg/pcs
Pinnaviimistlus	Pre-Galvanized
Temperatuurikindlus	-50 - 150 °C
Standardid	ČSN EN 61537
Kruvide arv ühendamiseks	17

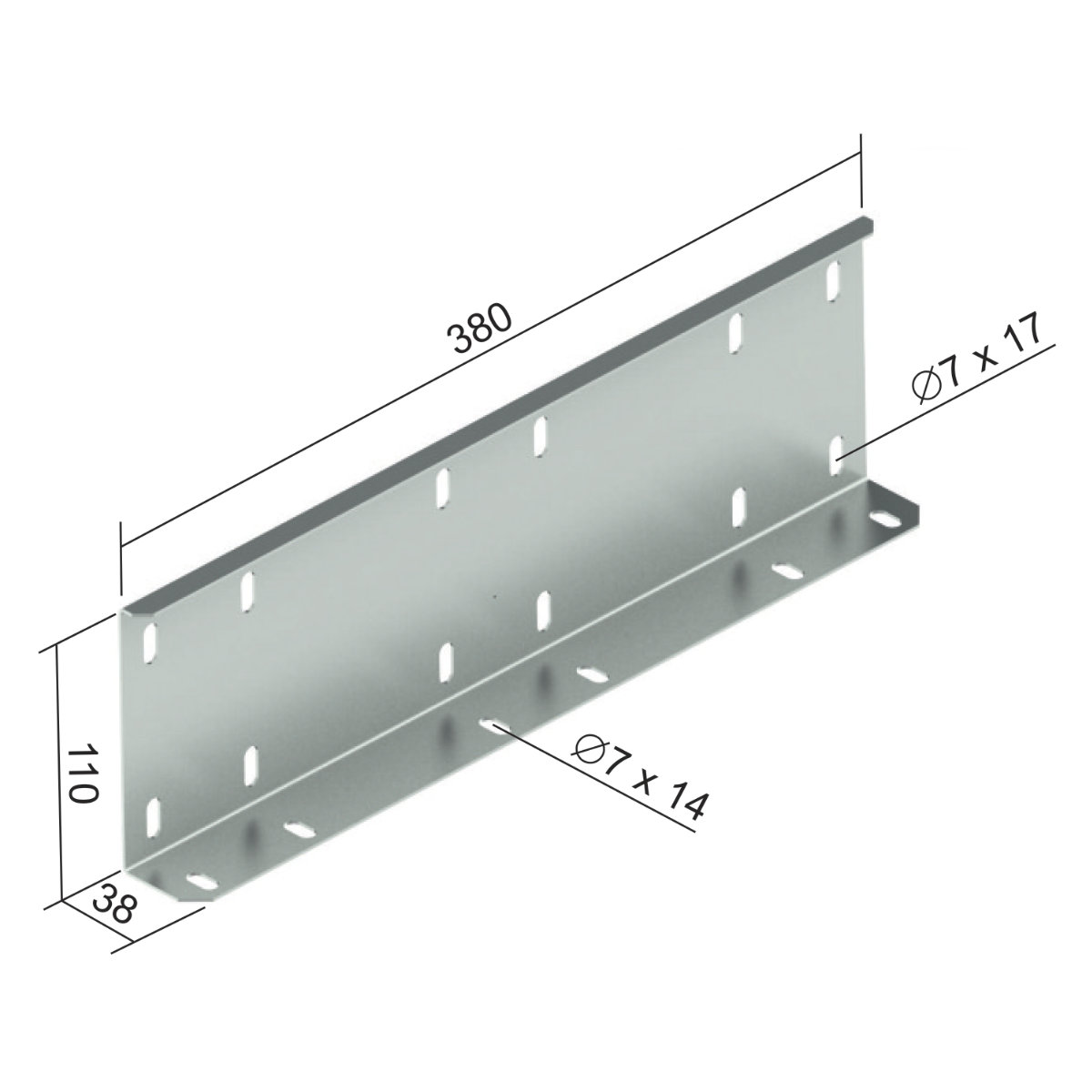

Kaabliteede kõrguse jaoks	110 mm

Tootest
Tarvikud
Sarnased tooted

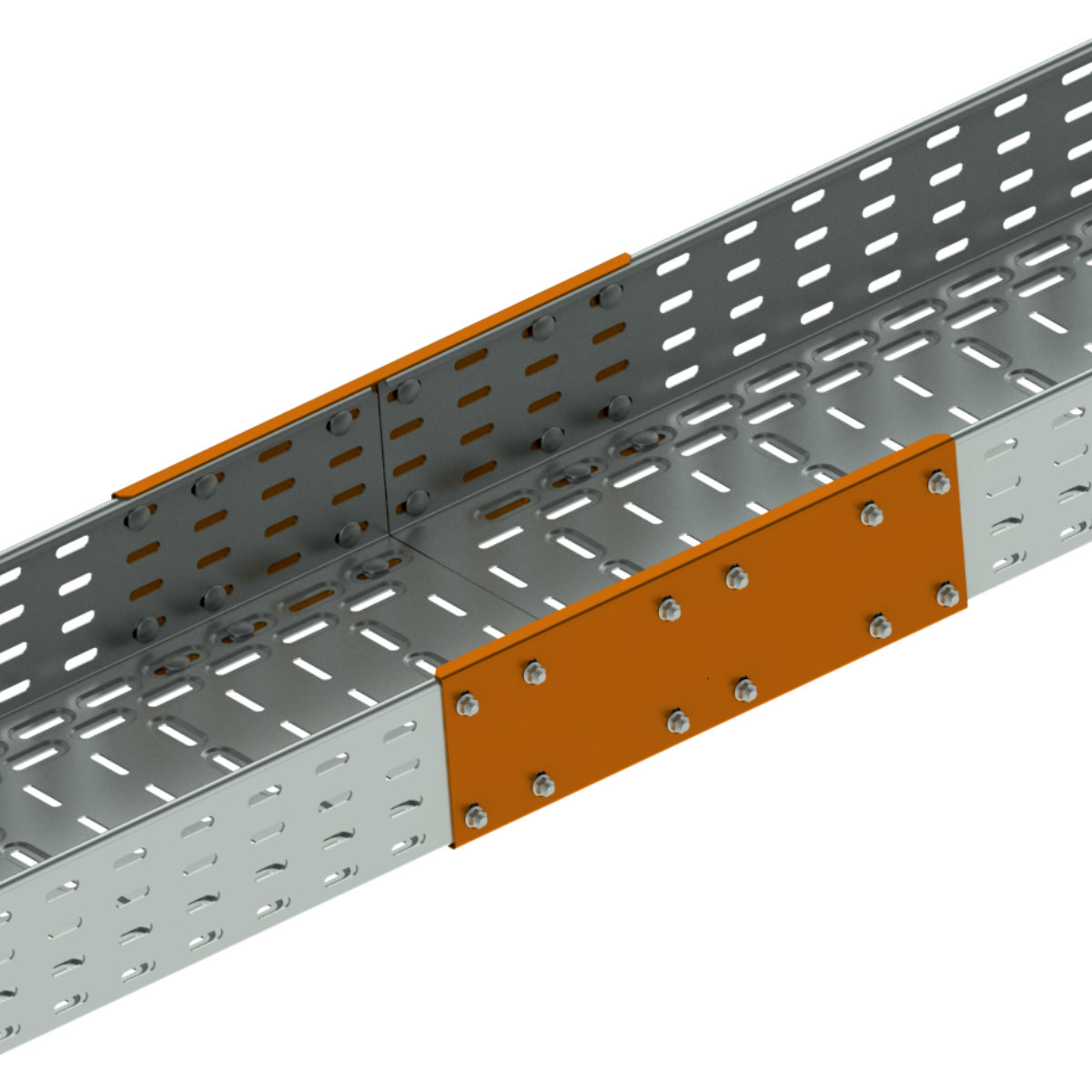

The connecting plate is designed for connecting 6 m long cable trays with 110 mm sidewall.
To fix the connection use 17 pcs of bolts NSM 6X10. 12 pcs of bolts are used to cable tray sidewall and 5 pcs are used to cable tray bottom.
