EAN kood | 8595057636194 |
Tollikood | 72169180 |
Kaal | 4,8000 kg/m |
Pinnaviimistlus | Eelnevalt tsingitud |
Temperatuurikindlus | -50 - 150 °C |

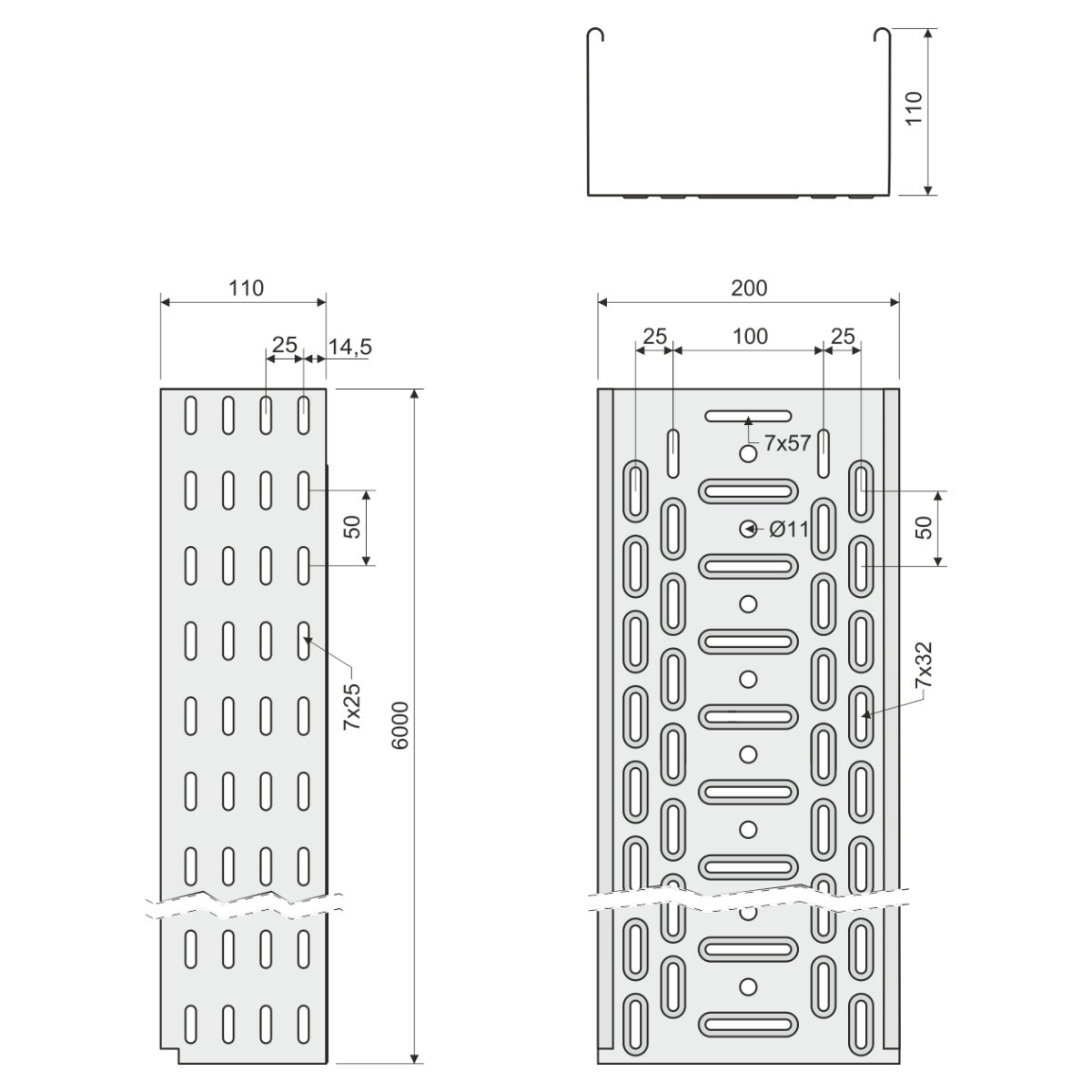

Laius | 200 mm |
Kõrgus | 110 mm |
Pikkus | 6000 mm |
Standardid | ČSN EN 61537 |
Metallplaadi paksus | 1,5 mm |
Kruvide arv ühendamiseks | 34 |

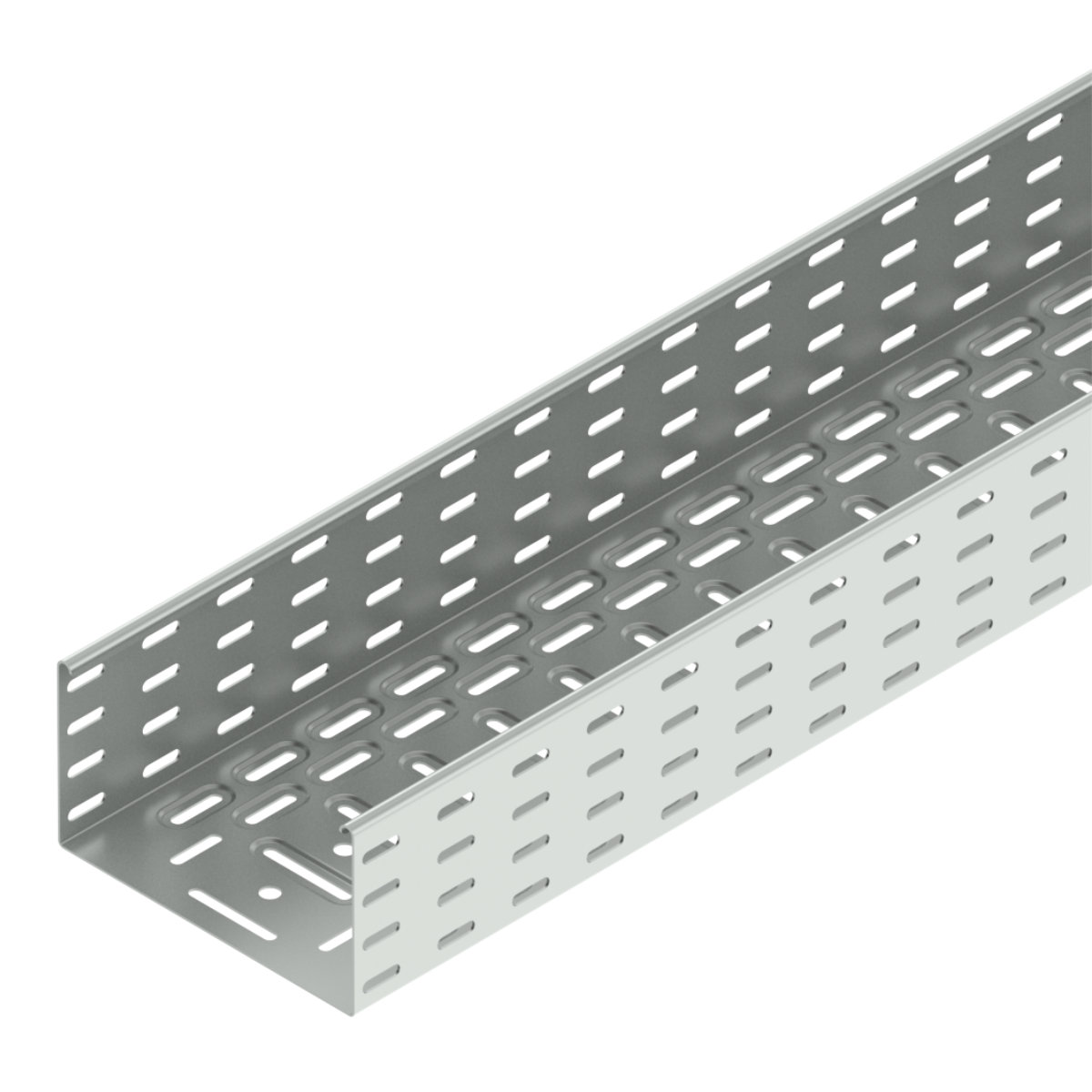

The standard length of the cable tray is 6 m. The trays are connected by 2 pcs of KDS jointing plate and 17 pcs of NSM 6X10 bolts. Jointing points can not be placed over the support. The cable tray is suitable for creating a cable route with a support spacing of up to 6 meters.
