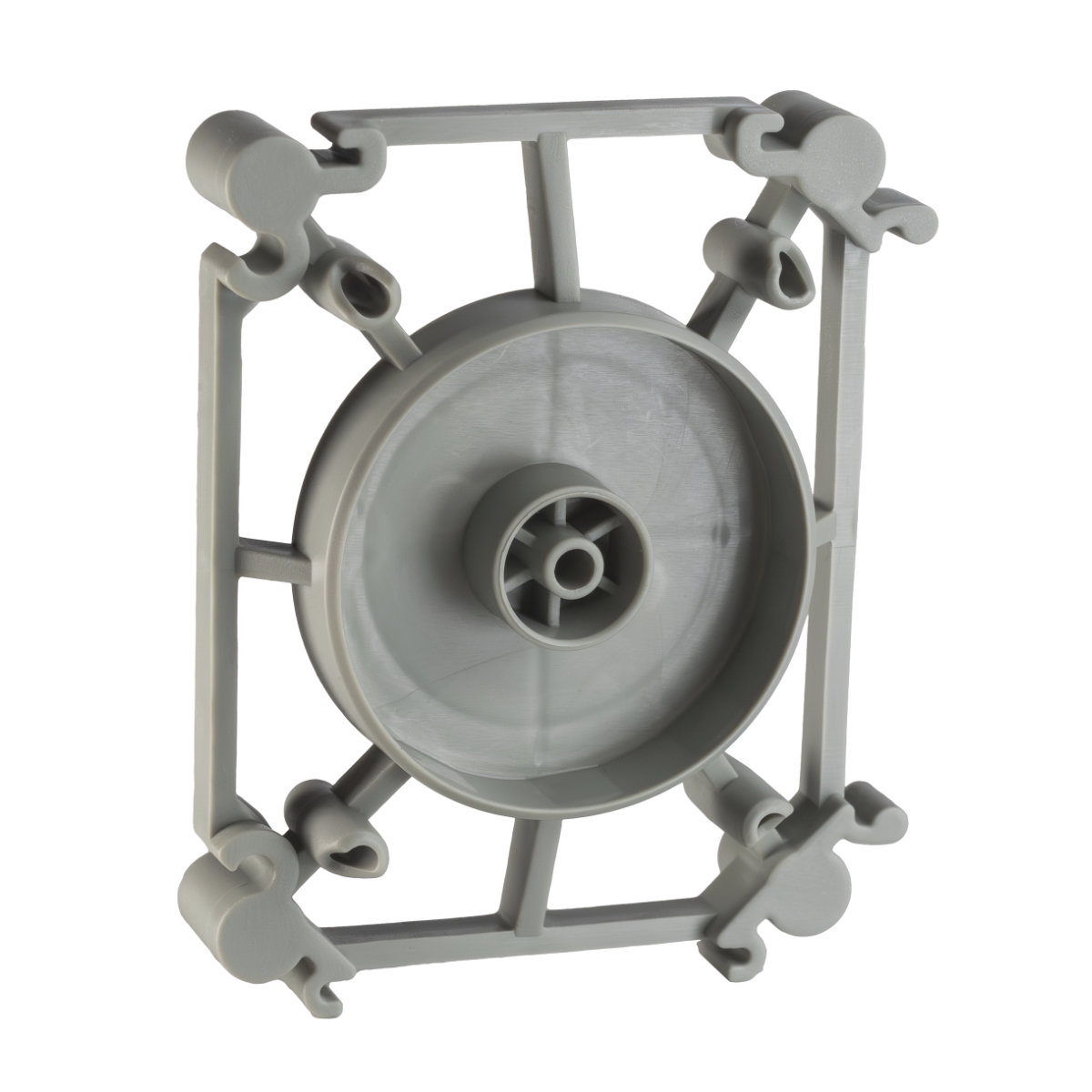

illustrative picture
To download 3D models, please login or create an account and request access.
SBP_1_EN
| EAN kood | 8595568938718 |
| Tollikood | 39259080 |
| Kaal | 0,0161 kg/pcs |
| Värv | hall |
| Materjal | PP |
| Halogeenivaba materjal | jah |
| Juhtiv materjal | jah |
| Temperatuurikindlus | -25 - 60 °C |
| Lühiajaline temperatuuritaluvus | 90 °C |
| Põlemistest | 650 °C |

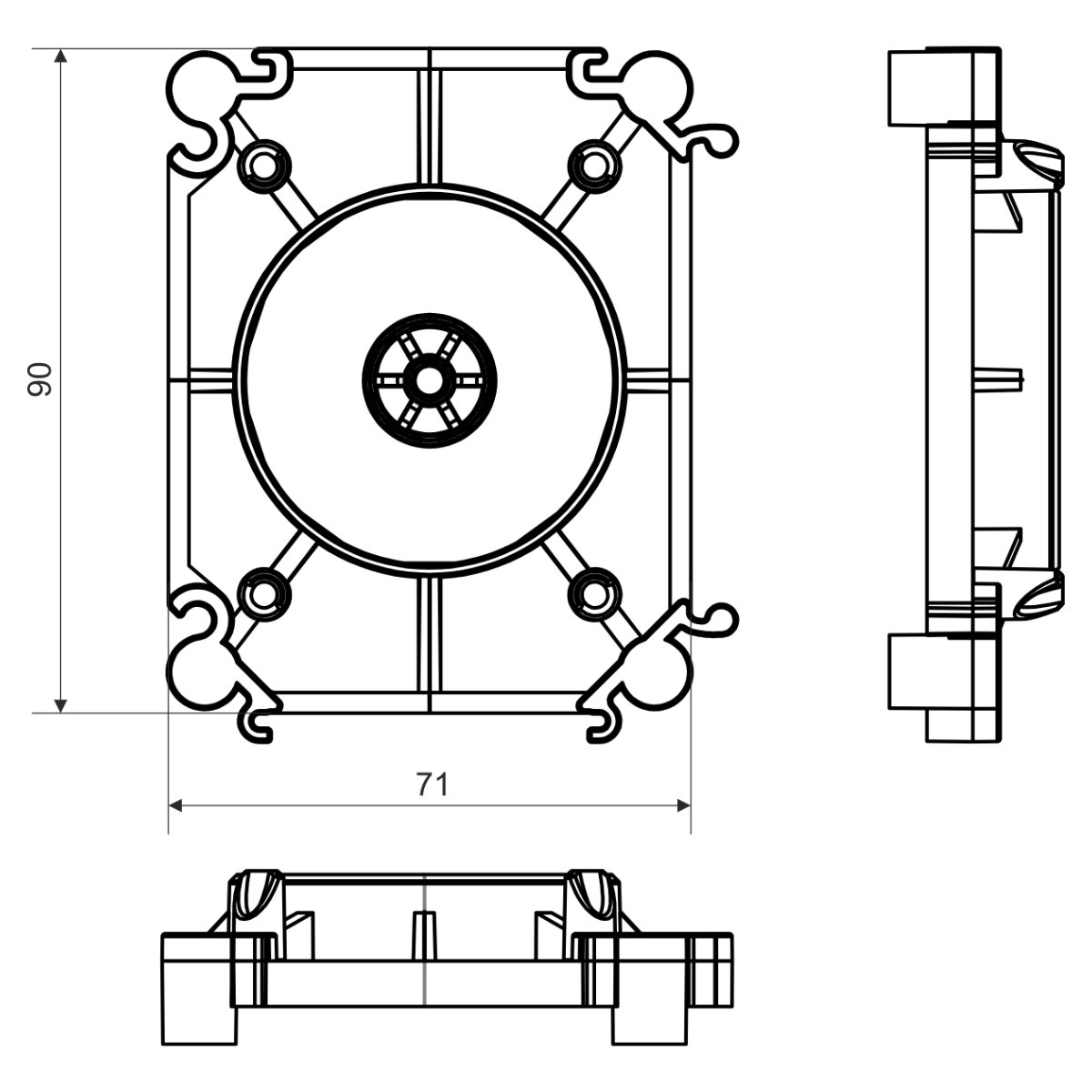

| Laius | 71 mm |
| Kõrgus | 90 mm |
| Alusmaterjali tulekaitseklass | A1 |
| Vahekaugus,kui ühendada 2 harukarpi | 71/90 mm |
| Pakendi kirjeldus | 5pcs packed in plastic bag |
Support for cast concrete for splitting the box between opposing formwork. Support adapted for the insertion of the SB-M1 holding magnet for fixing the boxes or supports to the metal formwork. The possibility of fixing with nails or screws to wooden formwork. The possibility of connection with a pitch of 71 mm or 90 mm. It allows the opposite box to be fixed using steel rods 6 mm KBP-8 (not included in the package).
