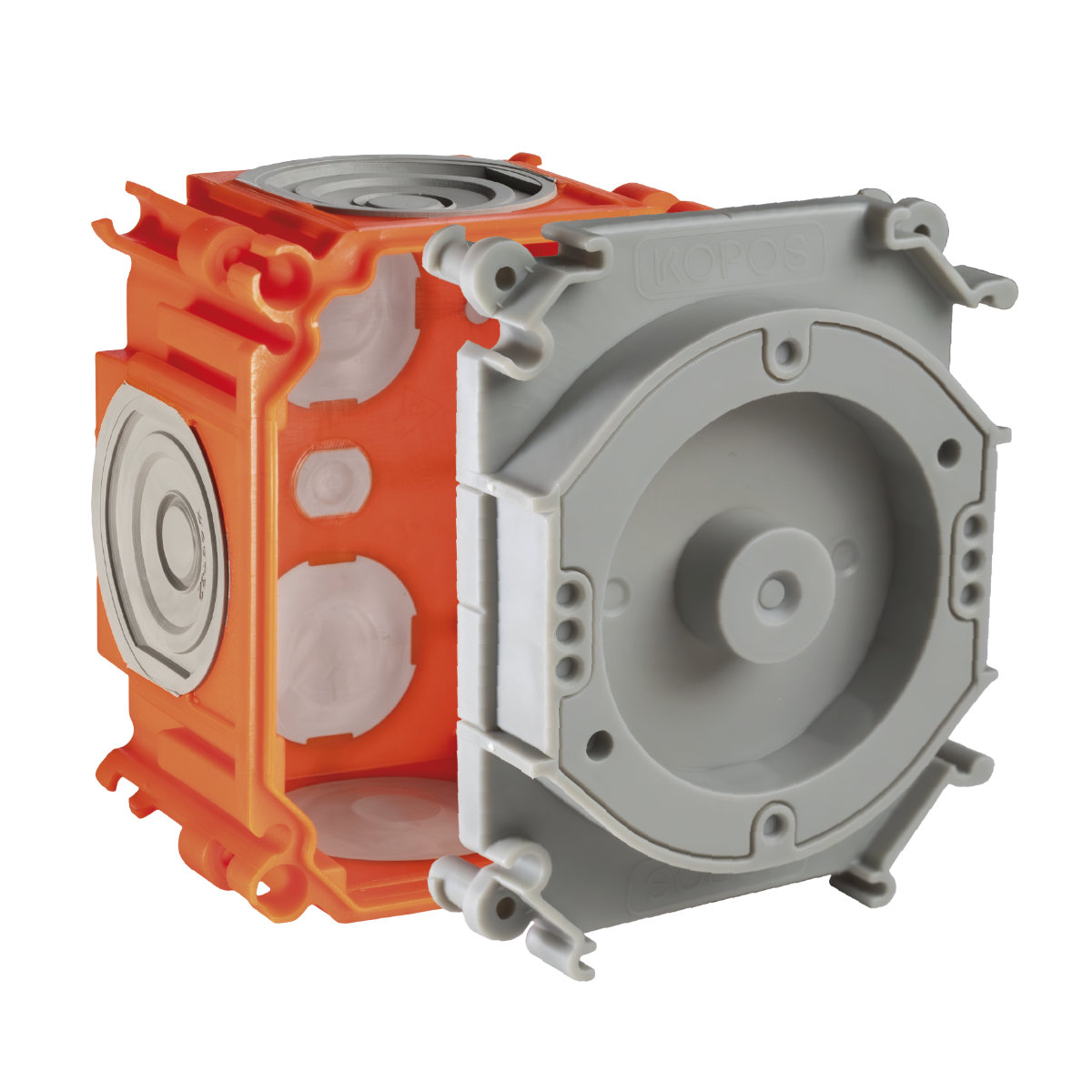

illustrative picture
To download 3D models, please login or create an account and request access.
SBKP_6870M_EN
| EAN kood | 8595568938657 |
| Tollikood | 39259080 |
| Kaal | 0,0579 kg/pcs |
| Värv | oranž + hall |
| Materjal | PP |
| Halogeenivaba materjal | jah |
| Juhtiv materjal | jah |
| Nimipinge | 500 V |
| Temperatuurikindlus | -25 - 60 °C |
| Lühiajaline temperatuuritaluvus | 90 °C |
| Põlemistest | 650 °C |

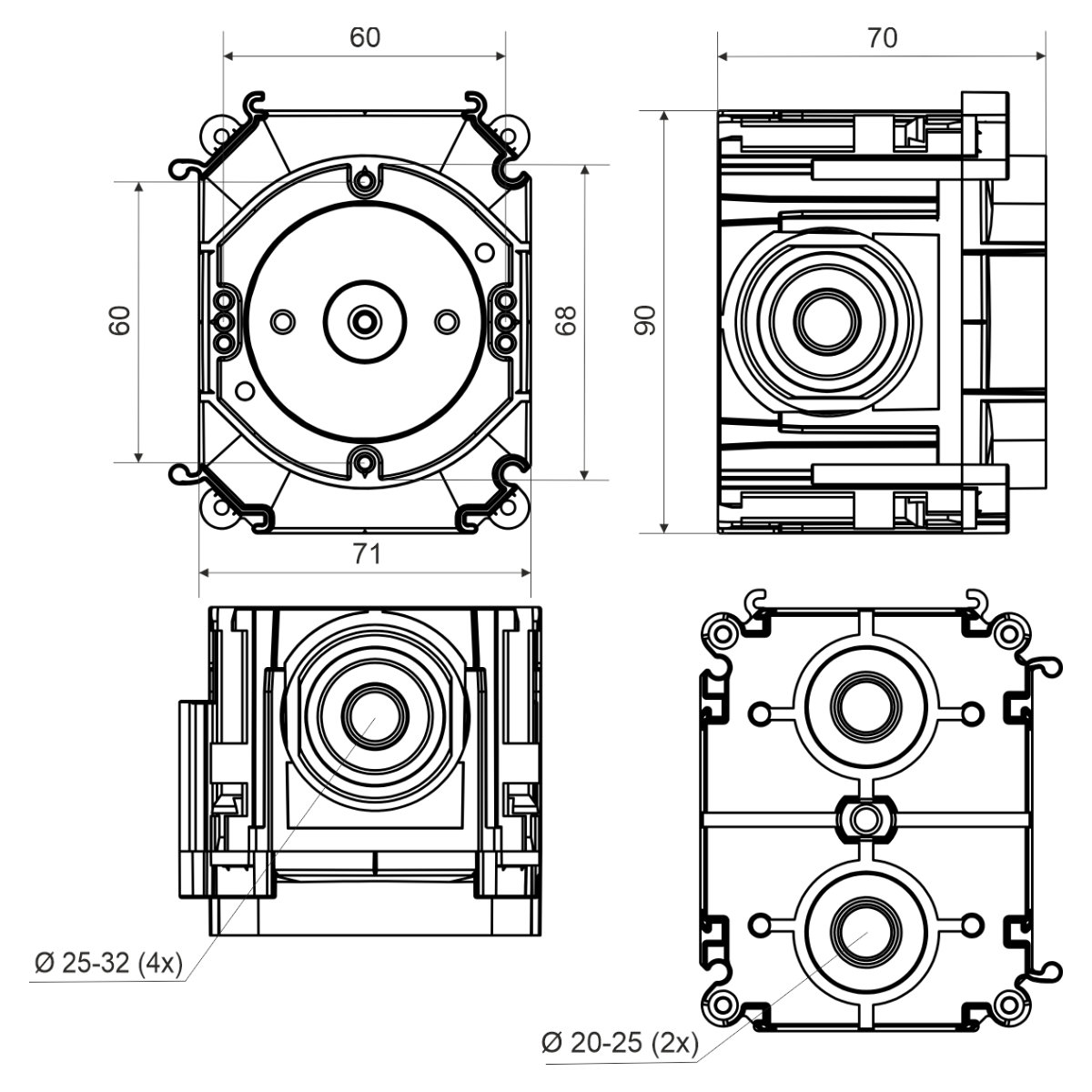

| Keskmine | 68 mm |
| Laius | 71 mm |
| Kõrgus | 90 mm |
| Sügavus | 70 mm |
| Alusmaterjali tulekaitseklass | A1 |
| Vahekaugus,kui ühendada 2 harukarpi | 71/90 mm |
| Pakendi kirjeldus | box with shrink wrap lid |
Instrument box for cast concrete - installation depth 70 mm. The lid of the box adapted to insert the holding magnet SB-M1 for fixing the box to the metal formwork. The possibility of fixing the lid of the box with nails or screws to the wooden formwork. Sealed connection of the lid with the box. Pipe inlets fitted with a sealing membrane to prevent the concrete penetration. Possibility of fixed connection of boxes with a pitch of 71 mm and 90 mm. The possibility of fixing the box to the reinforcement (metal armature) using SB-MK 1 mounting wings (not included in the delivery). The possibility of using a box for double-sided assembly - mutual fixation using steel rods 6 mm KBP-8 (not included in the package).
