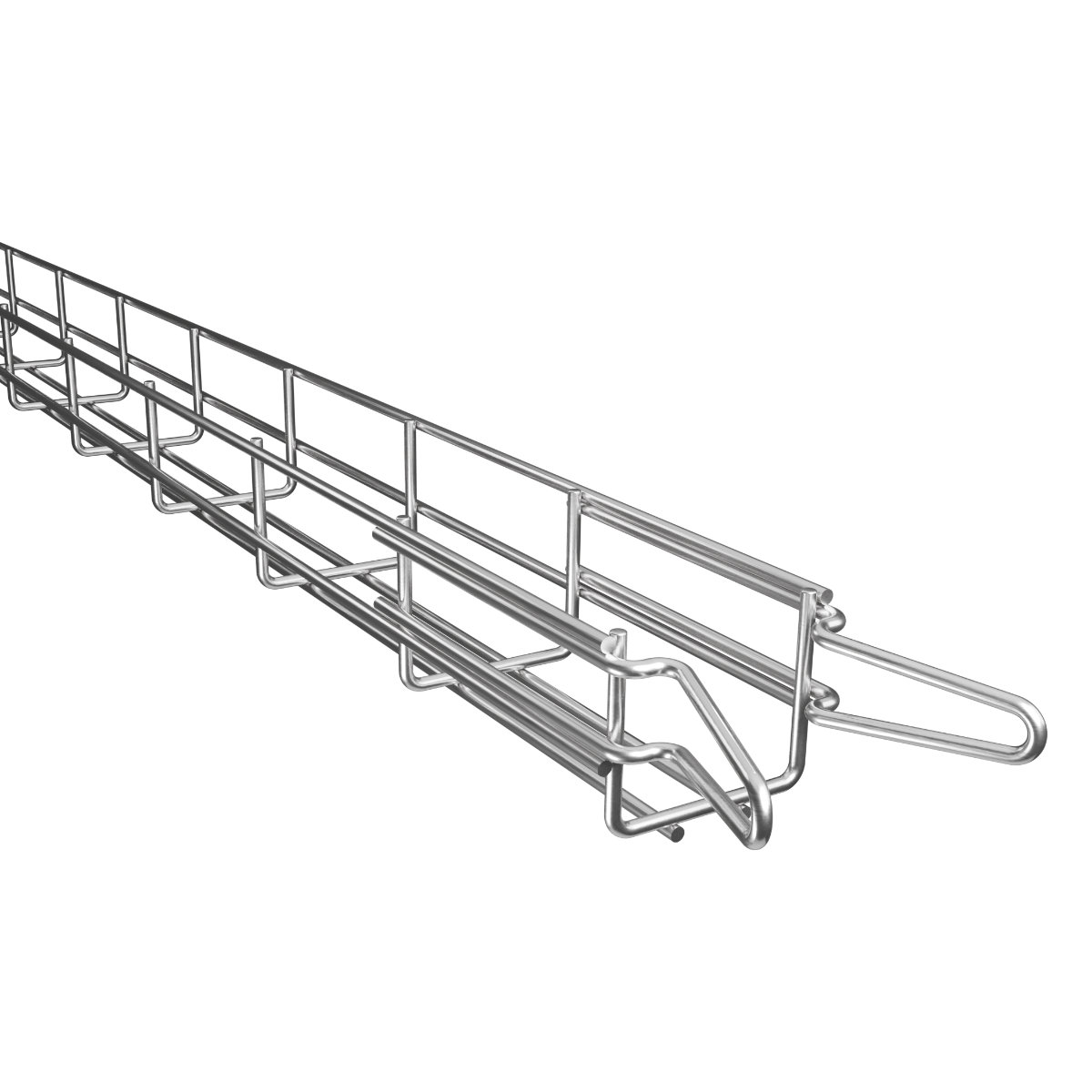

illustrative picture
DZI_V_EN
| EAN kood | 8595568940278 |
| Tollikood | 73262000 |
| Kaal | 0,7700 kg/m |
| Pinnaviimistlus | stainless steel |

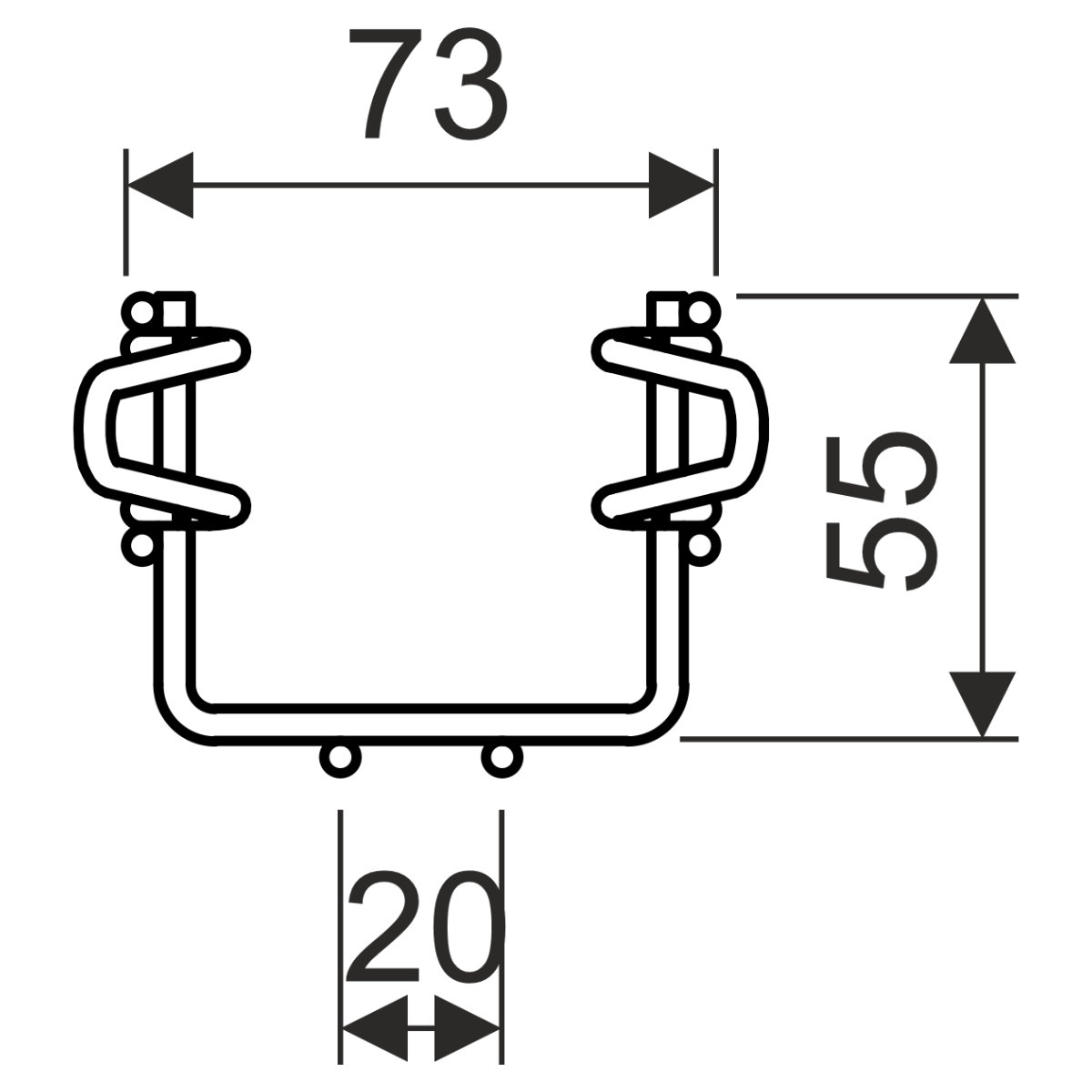

| Laius | 73 mm |
| Kõrgus | 55 mm |
| Pikkus | 3000 mm |
| Funktsionaalsus tulekahju ajal | P90-R, E90, PS90 |
| Standardid | ČSN EN 61537 |
| Tulekindluse standardid | ČSN 73 0895, DIN 4102-12, STN 92 0205 |
| Juhtme läbimõõt | 4 mm |
| Alumine riiv | 20x100 |
| Max koormus tulekindluse tagamiseks | 5 - 10 kg |
Each wire tray has integrated connectors at one end designed to firmly connect the route. In this way the conductive connection is fulfilled.
Note for system with maintained functionality in fire:
You find more information in the catalogue Systems with maintained functionality in fire.
