DZI_EN
| EAN kood | 8595568931436 |
| Tollikood | 73262000 |
| Kaal | 1,7400 kg/m |
| Pinnaviimistlus | stainless steel |

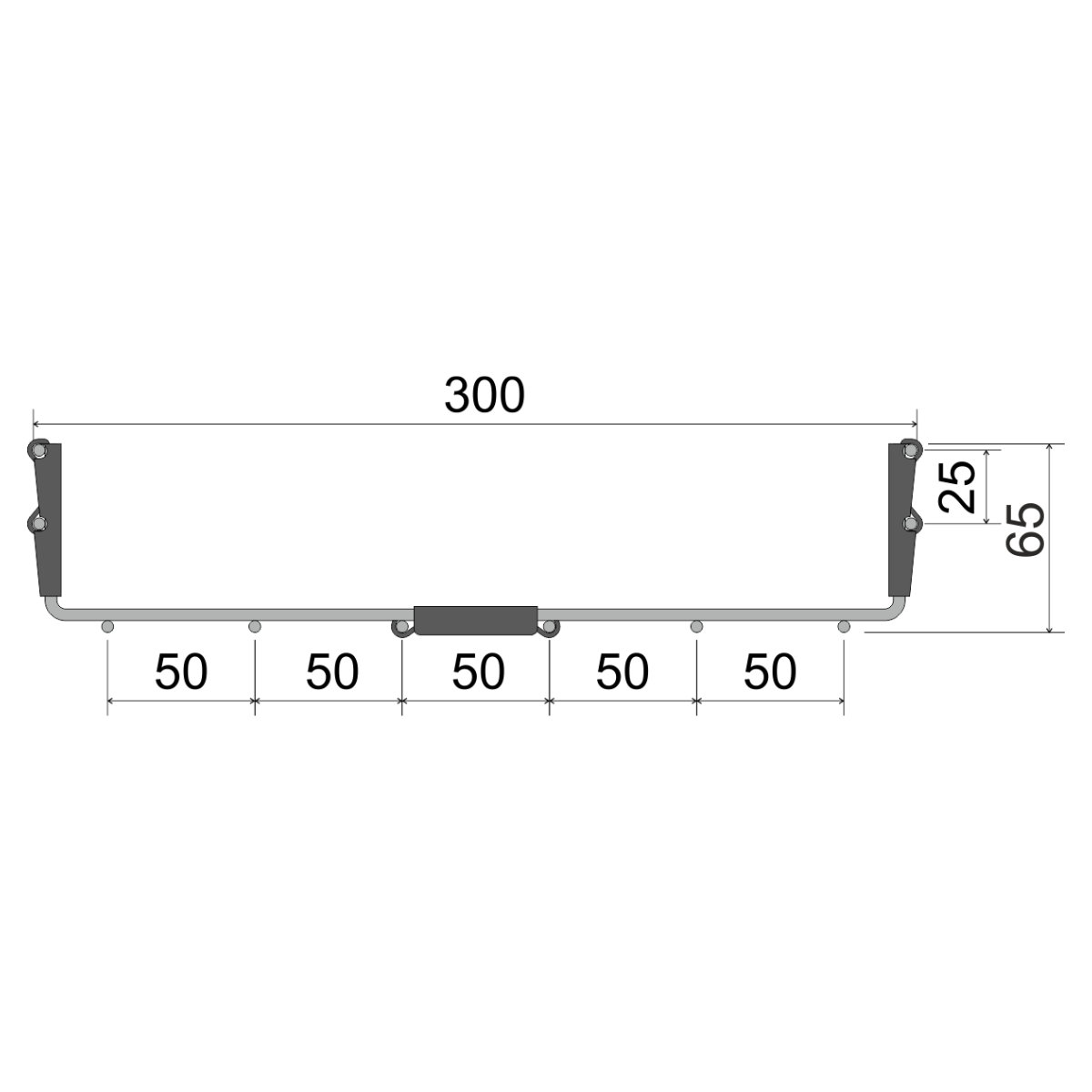

| Laius | 300 mm |
| Kõrgus | 60 mm |
| Pikkus | 3000 mm |
| Funktsionaalsus tulekahju ajal | P90-R, E90, PS90 |
| Standardid | ČSN EN 61537 |
| Tulekindluse standardid | ČSN 73 0895, DIN 4102-12, STN 92 0205 |
| Juhtme läbimõõt | 4,3 mm |
| Alumine riiv | 50x100 |
| Ühendusosa kaabliteede alt | 1 |
| Max koormus tulekindluse tagamiseks | 5 - 10 kg |

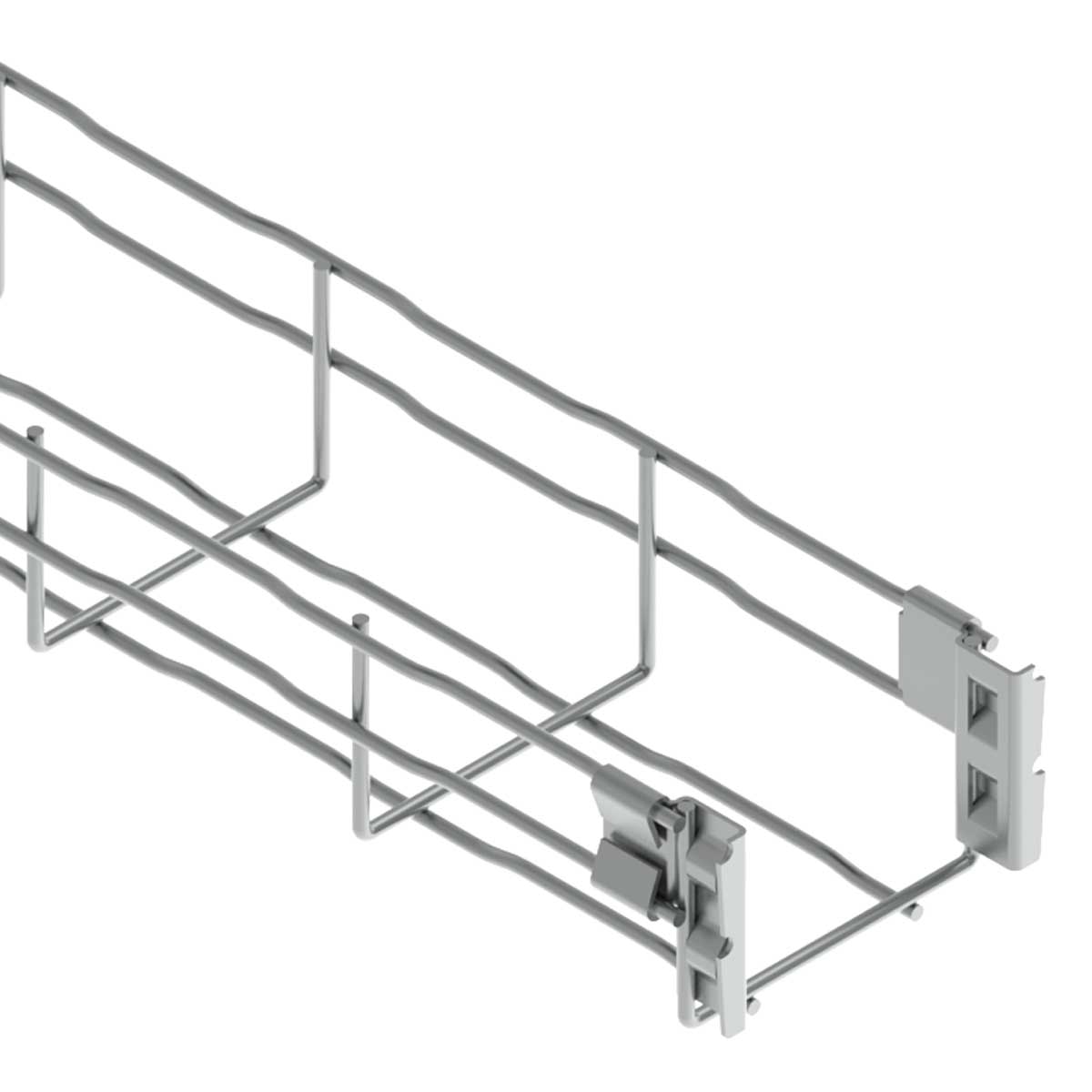

There are couplings at one end of the wire cable tray. In this way the conductive connection is fulfilled. To enable the proper ventilation it is recommended to install the trays at a distance at least 250 mm from each other and 20 mm from the wall.
Note for system with maintained functionality in fire:

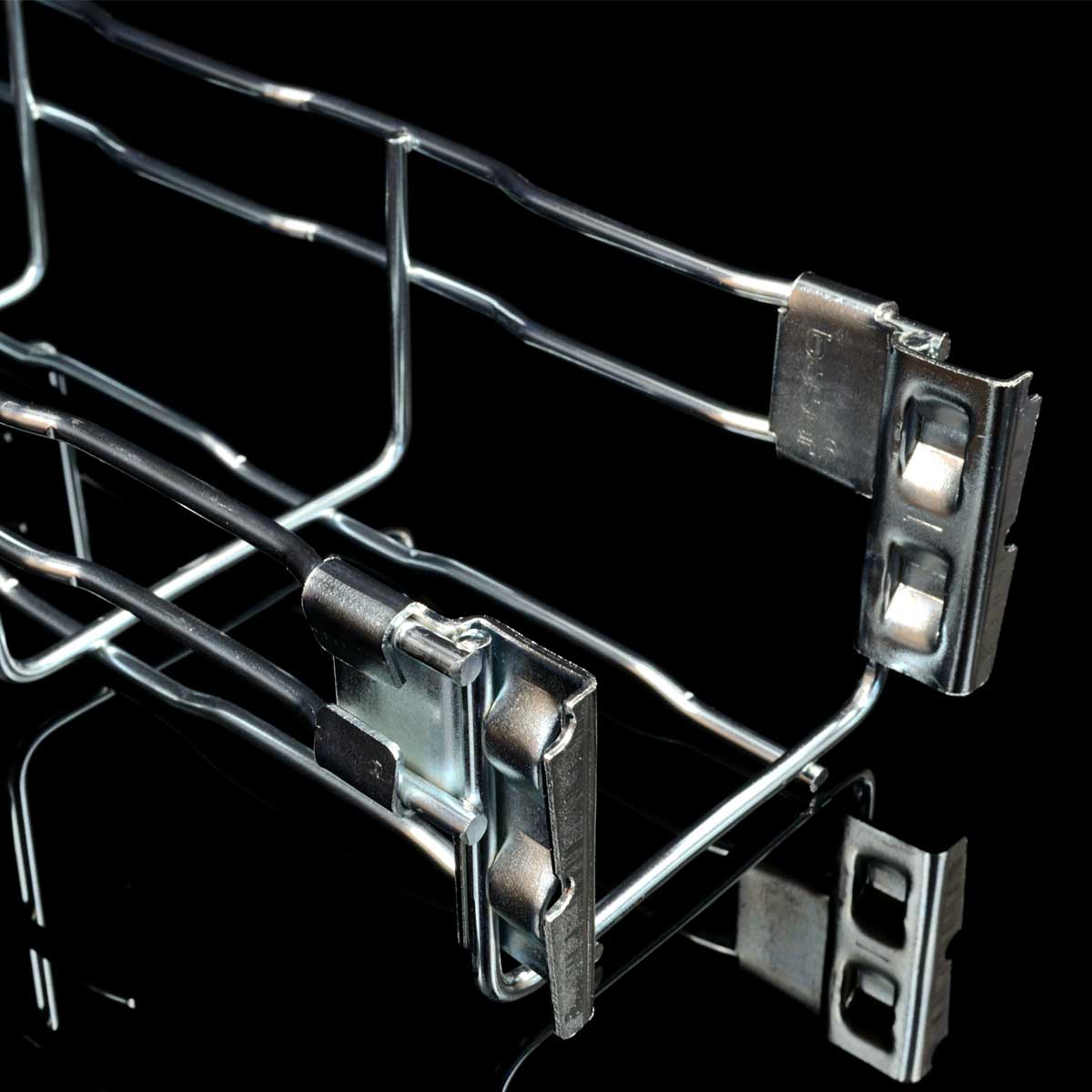

There are couplings at one end of the wire cable tray - to the width of 200 mm the couplings are situated on the sideways; from the width 300 mm there are couplings on the sideways and also at the bottom of the tray. In this way the conductive connection is fulfilled. The DZI wire tray with fire resistance is fixed with a DZS/B screw.
You find more information in the catalogue Systems with maintained functionality in fire.
