EAN kood | 8595568940636 |
Tollikood | 83024190 |
Kaal | 0,2150 kg/pcs |
Pinnaviimistlus | Magnelis® |
Maksimaalne koormus | 150 kg |

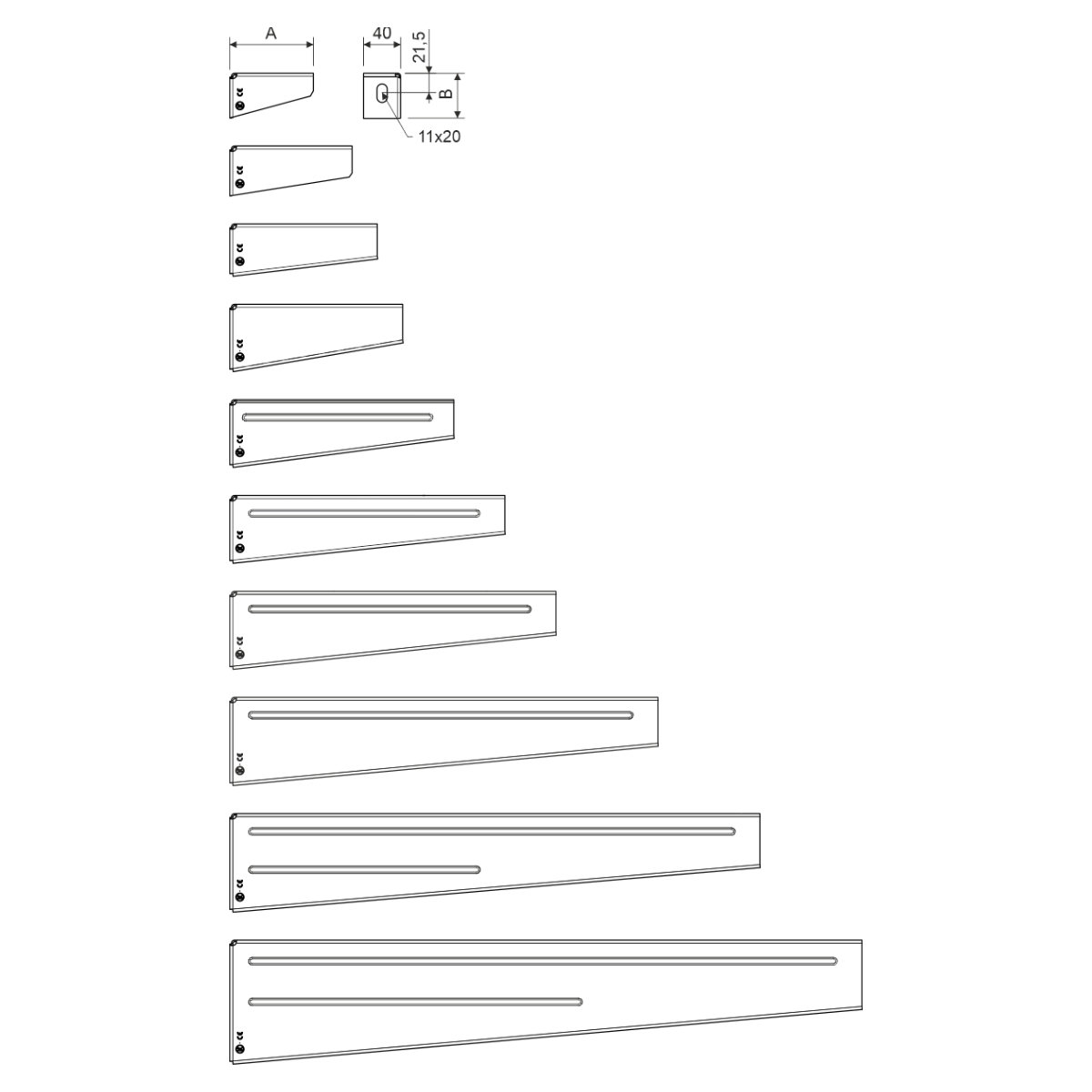

Mõõde A | 170 mm |
Mõõde B | 60 mm |
Kaabliteede laiuse jaoks | 150 mm |
Kaabliteede kõrguse jaoks | 35 - 110 mm |

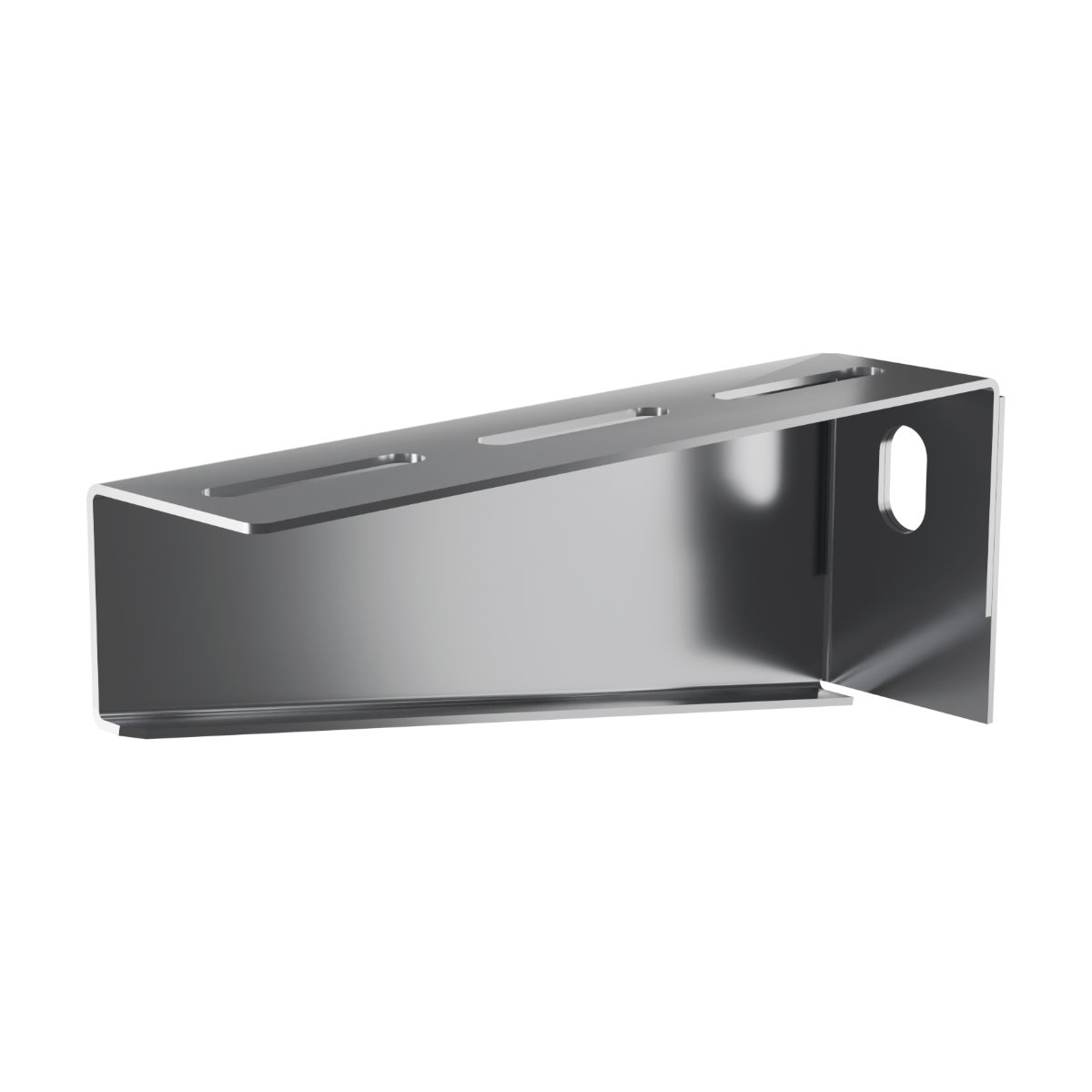

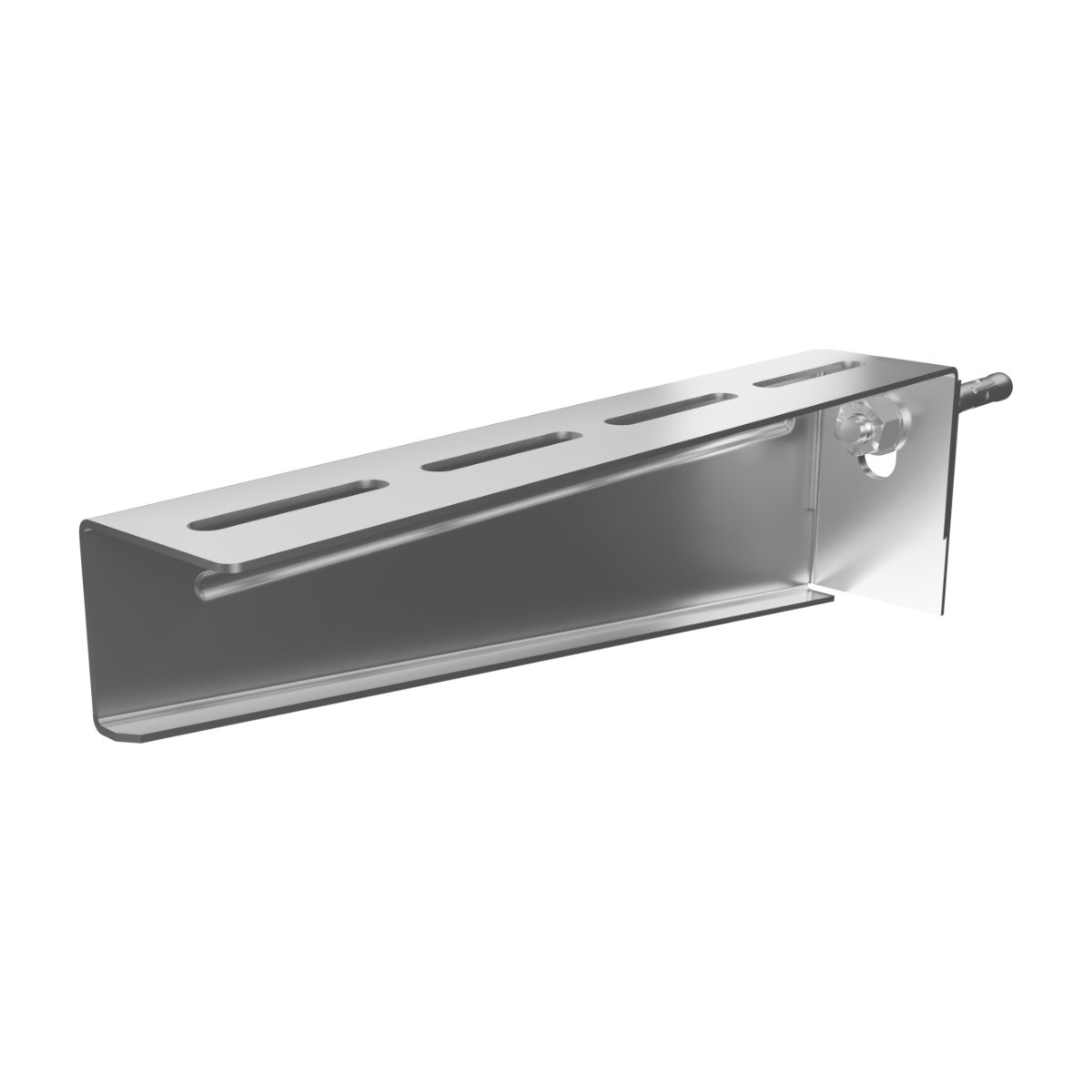

The bracket is intended for mounting to a wall or a ceiling profile. Fixing to the wall is done using a Ø 8 mm anchor. For mounting on the ceiling profile SPL and SPS, sliding nuts PM 41 M 10 together with screws S 10X20 are used. For fastening to the ceiling profile SPLN, SPSN or SPU, a screw S 10X20, a nut M 10 and a washer PD 10 are used. For fastening the cable tray to the bracket DS, screws NSM 6X10 are used.
