EAN kood8595568940650
Tollikood83024190
Kaal0,3298 kg/pcs
PinnaviimistlusMagnelis®
Maksimaalne koormus150 kg
Mõõde A270 mm
Mõõde B64 mm
Kaabliteede laiuse jaoks250 mm
Kaabliteede kõrguse jaoks35 - 110 mm

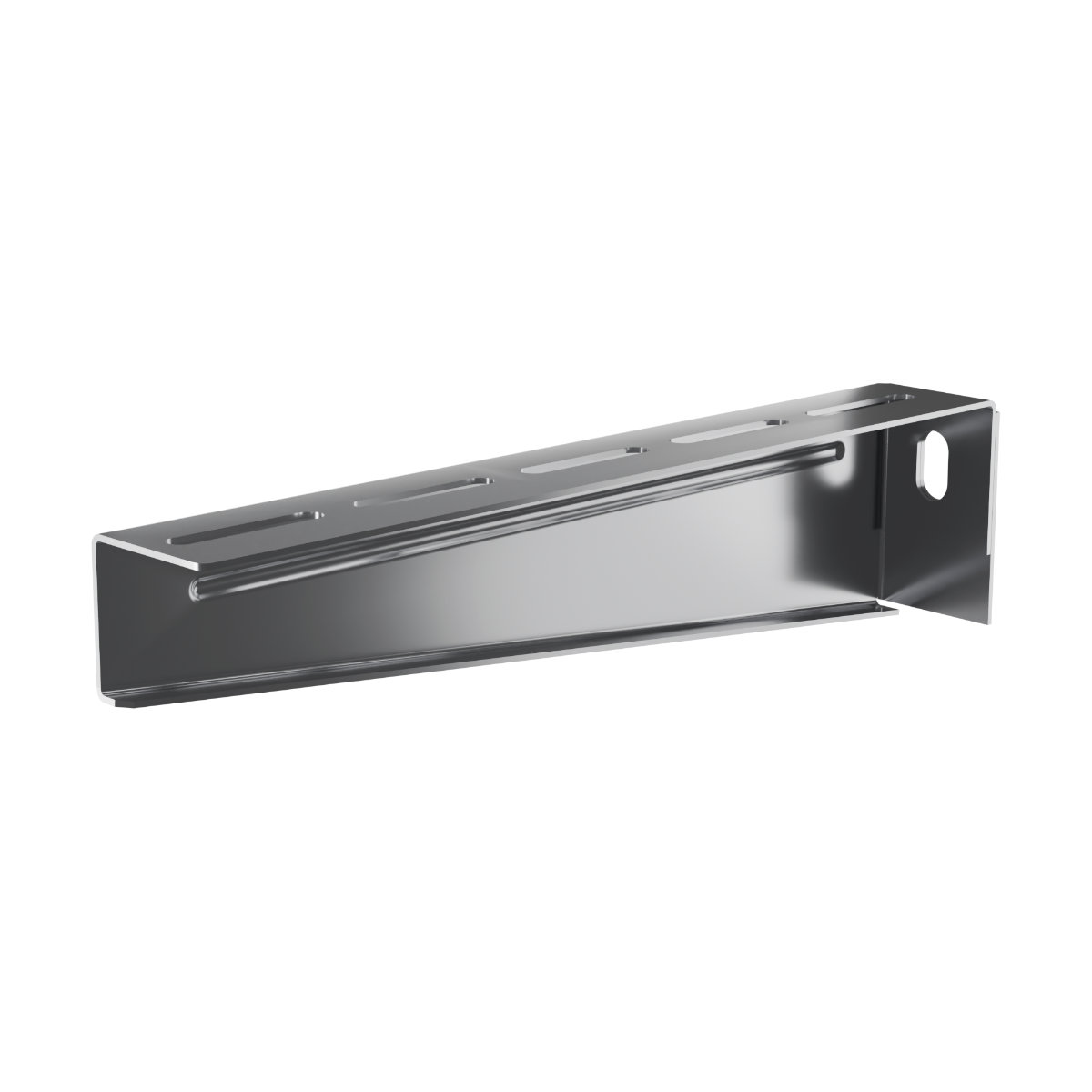

The bracket is intended for mounting to a wall or a ceiling profile. Fixing to the wall is done using a Ø 8 mm anchor. For mounting on the ceiling profile SPL and SPS, sliding nuts PM 41 M 10 together with screws S 10X20 are used. For fastening to the ceiling profile SPLN, SPSN or SPU, a screw S 10X20, a nut M 10 and a washer PD 10 are used. For fastening the cable tray to the bracket DS, screws NSM 6X10 are used.
